Helkama Velox Oy

Helkama SE10 10sp 28”

The versatile and stylish Helkama SE10 e-bike is suited for urban riding, commuting as well as leisurely countryside rides. Reliable Shimano technology guarantees care-free kilometres.

3299,00

Frame size:
52 cm56 cm
Find closest dealer

The versatile and stylish Helkama SE10 e-bike is suited for urban riding, commuting as well as leisurely countryside rides. Reliable Shimano technology guarantees care-free kilometres.

Versatile hybrid e-bike

The comprehensively equipped Helkama SE10 hybrid e-bike is the choice of an urban cyclist. Shimano Deore gear set, hydraulic disc brakes, Schwalbe Energizer puncture-resistant tyres, mudguards, frame lock, pannier rack, kickstand and front and rear lights are included in the standard equipment. The pannier rack is compatible with AtranVeloSystem baskets and bags, so the bicycle is easy to accessorise. The bicycle is available in two frame sizes: 52 cm and 56 cm.

The reliable Shimano Steps E6100 60 Nm motor with torque sensor offers a natural ride feel and cycling experience. The motor is compact and practically noiseless. The pedal assist is ready to help you go uphill whenever you need it. The SE10 hybrid e-bike is powered by a semi-integrated Shimano BT-E8010 battery.

The large and easy-to-read Shimano SC-E6100 display provides all the necessary ride data. The cycle computer displays your speed, distance, trip duration, time, gears, estimated range and battery charge. The selection switch on the handlebar has two big and clear buttons for switching between the assist levels.

Shimano E-Tube Project app

You can connect your bicycle by Bluetooth to the Shimano E-Tube Project app for editing the ride settings wirelessly. You can adjust the settings to match your riding habits and preferences directly in the app. You can create two different profiles in the app, switch between them during your ride and review your ride data.

Features

Additional information

Brand

Helkama

Product name

Helkama SE10 10s 28"

Frame

Aluminum

Frame size

52 cm, 56 cm

Front fork

Suntour NEX E25, 63 mm

Transmission

Shimano Deore M6000 10s

Gear amount

10

Shifter

Shimano Deore SL-T610

Front brakes

Shimano MT200 hydraulic disc brake 180 mm

Rear brakes

Shimano MT200 hydraulic disc brake 160 mm

Brake lever

Shimano

Crank set

Shimano FC-E6100 38H, 170 mm

Chain

KMC

Rims

Mach1 21-622 36R black

Saddle

Selle Royal Ariel Skingel Athletic

Seatpost

30,9 x 350 mm

Handlebar

Aluminium 31,8/660 mm

Stem

Adjustable 110 mm

Tires

Schwalbe Energizer Plus black

Wheel size

28"

Tire size ETRTO

40-622

Motor brand

Shimano

Motor model

Shimano E6100

Motor specifications

250W – 36V – 60Nm- 25km/h

Battery model

Shimano E8010

Battery Energy (Wh)

504

Battery placement

Frame battery

Battery charging time
Charger

Shimano E6002

Display

Shimano E6100

Color

black

Lukko

AXA Solid Plus

Recommended height
Frame size Height (cm)
52-cm 160-180
56-cm 170-190
Weight (kg)

52-cm: 24,5
56-cm: 24,6

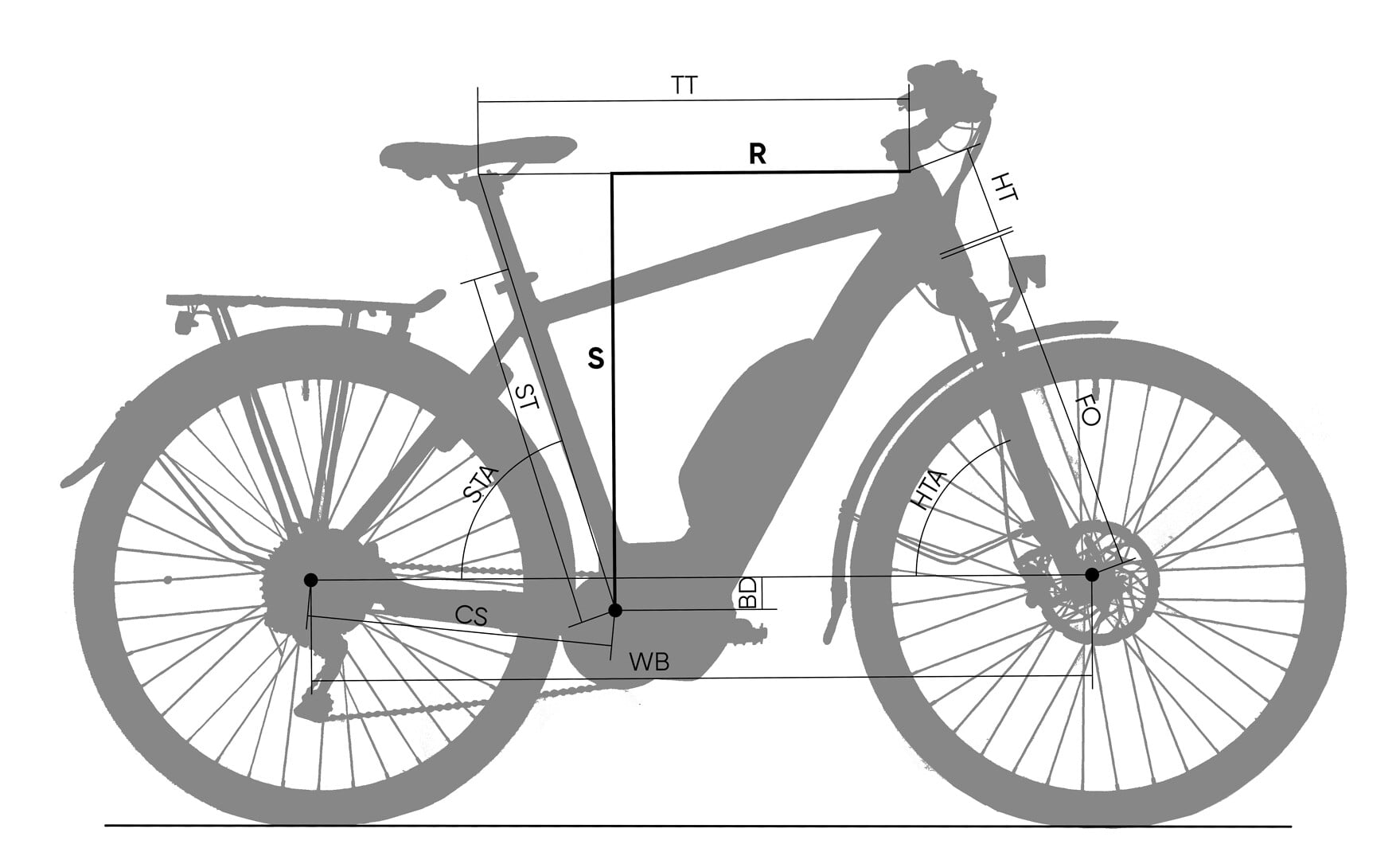

Helkama SE10 10sp 28”: 52-cm

fs ‐ Frame size 52cm
st ‐ Seat tube length 520
tt ‐ Effective top tube length 620
ht ‐ Head tube length 155
hta ‐ Head tube angle 71
sta ‐ Seat tube angle 73
cs ‐ Chainstay length 440
bd ‐ Bottom bracket drop 65
fo ‐ Fork rake/offset 460
s ‐ Stack 632
r ‐ Reach 426
wb ‐ Wheelbase 1105

Helkama SE10 10sp 28”: 56-cm

fs ‐ Frame size 56cm
st ‐ Seat tube length 560
tt ‐ Effective top tube length 635
ht ‐ Head tube length 155
hta ‐ Head tube angle 71
sta ‐ Seat tube angle 73
cs ‐ Chainstay length 440
bd ‐ Bottom bracket drop 65
fo ‐ Fork rake/offset 460
s ‐ Stack 632
r ‐ Reach 442
wb ‐ Wheelbase 1120
