Helkama CX 10sp 28”
3899,00 €
MOTOR
Shimano EP6 85Nm 250W 25km/h
The EP6 drive unit offers EP8-level e-bike performance at a lower price and still offers 85 Nm of torque.
BATTERY
Shimano BT-EN805-L 504Wh
A high-capacity frame-integrated battery, ideal for those who want to ride longer between charges. Compact design and low centre of gravity for a more natural riding experience.
DISPLAY
Shimano SC-EN610
Large 2.8″ colour LCD screen with clear and quick access to key information about your bike.
Helkama CX 10sp 28”
3899,00 €

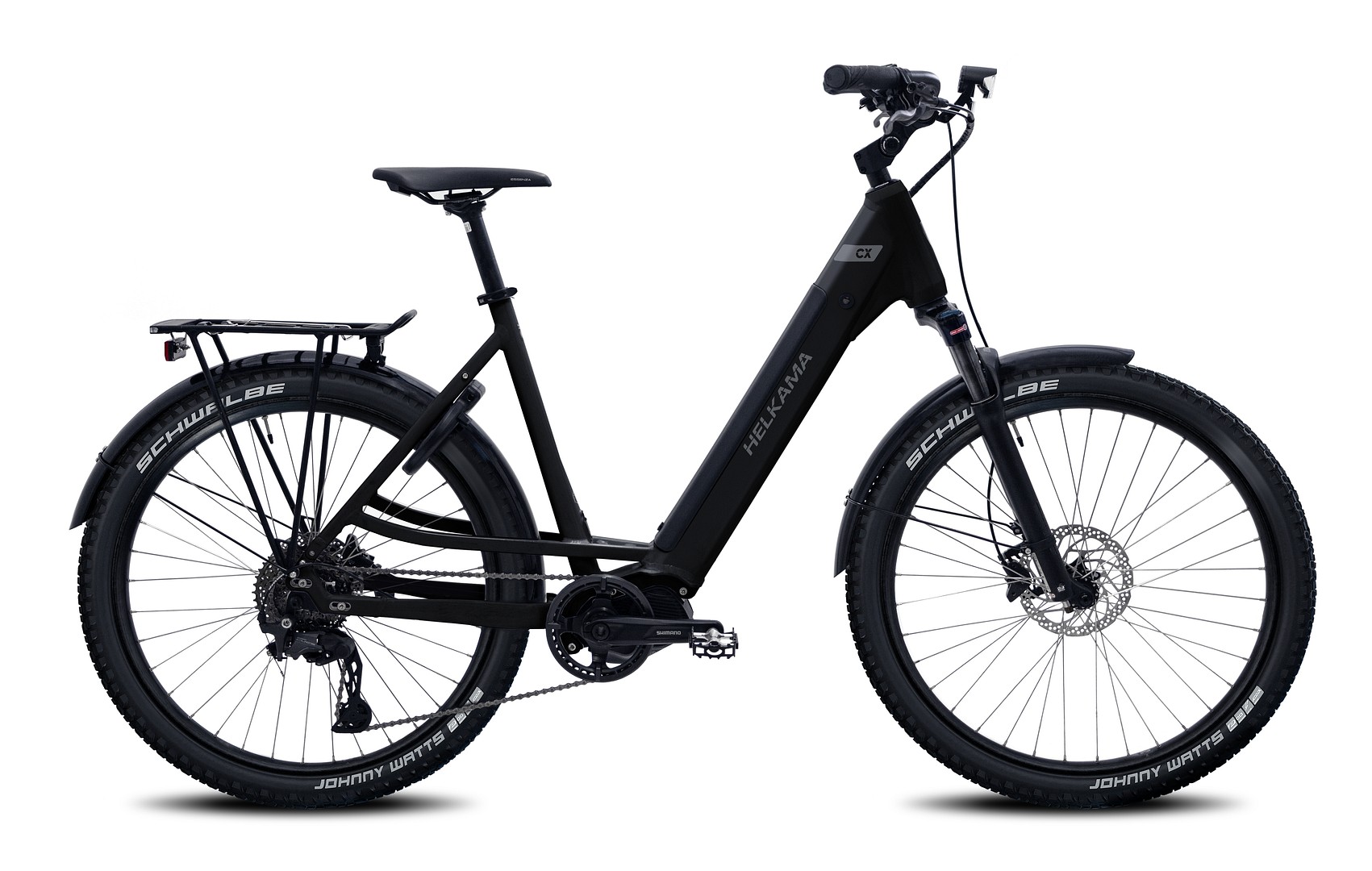

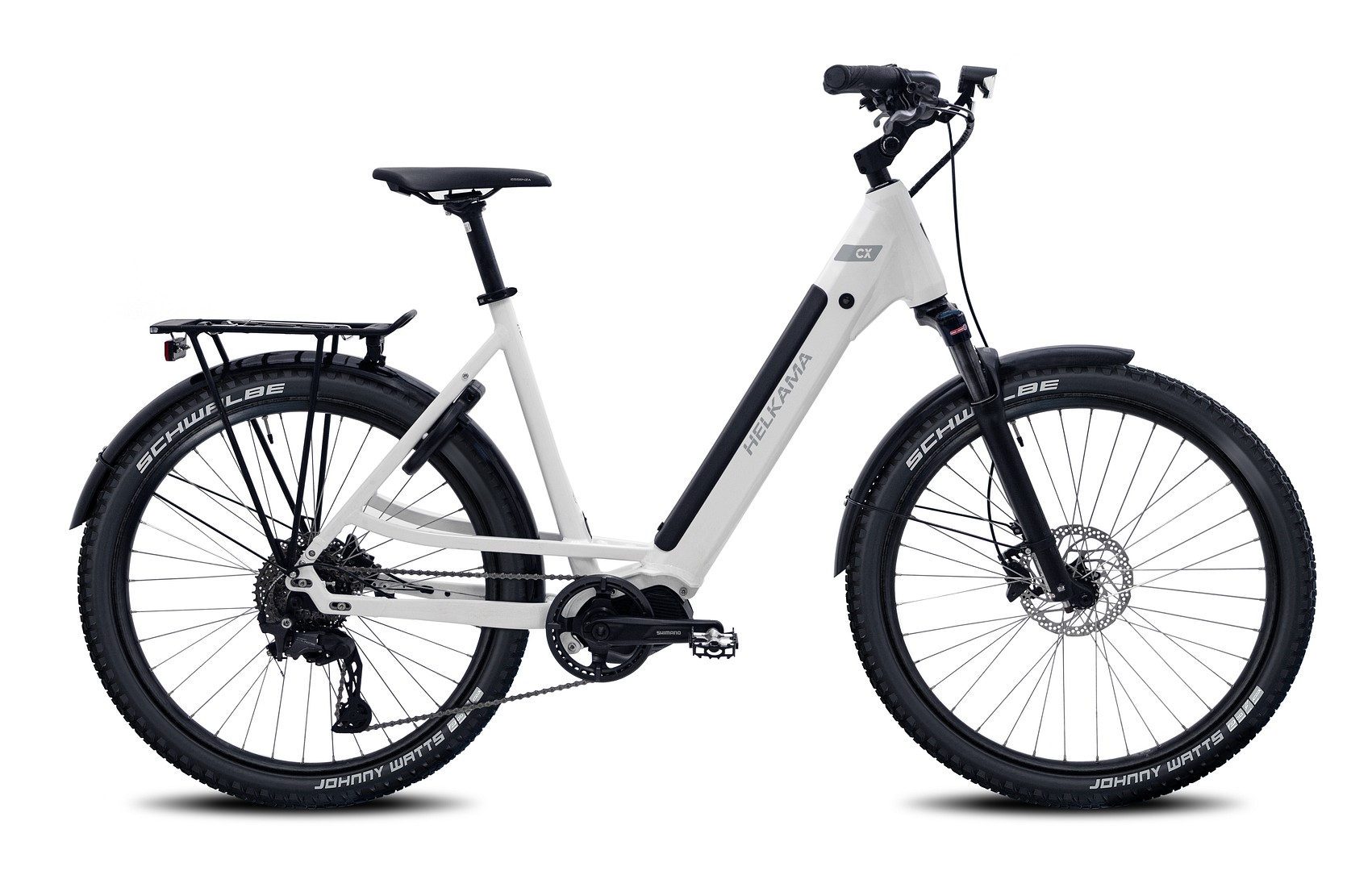

Low-frame Helkama CX is a new model for 2024. The versatile e-bike is an apt choice for commuting, daily rides, city or offroad.
Description
Low-frame Helkama CX is a new model for 2024. The versatile e-bike is an apt choice for commuting, daily rides, city or offroad.
The ten-speed CX urban e-bike has an easy and effortless step-through frame for easy mounting. The wide 27.5-inch tyres add stability to pedalling on gravel roads, trails and snow. Ride comfort is added by the high-quality Suntour XCR32 AIR front suspension and Shimano CUES gear set. The gear set is especially designed for premium urban and commute cycling.
Shimano EP6 motor
The Shimano EP6 motor offers powerful and smooth assistance for travel. The motor gives up to 85 Nm of torque to assist on the steepest inclines. Integrated into the frame with style, the 504 Wh long-life battery facilitates long and enjoyable cycling trips.
On the Shimano SC-EN610 colour display, you can conveniently track your trip data. The cycle computer displays your speed, distance, trip duration, time, gears, estimated range and battery charge. The selection switch on the handlebar has two big and clear buttons for switching between the three assist levels.
- Motor: Shimano EP6 85 Mn
- Battery: Shimano 504 Wh
- Display: Shimano SC-EN610
- Frame sizes: 50 cm and 54 cm
Diverse accessories of the CX e-bike
Helkama CX has very comprehensive standard equipment, but it can be accessorised for even more versatility for longer trips. The possible accessories include a front rack, front and rear basket and rear basket bag. These accessories are not included, but they can be purchased separately from your closest Helkama retailer.
Additional information
Product name | Helkama CX 10s 27.5” |
---|---|
Brand | Helkama |
Frame | Aluminum |
Frame size | 50cm, 54cm |
Front fork | Suntor XCR32 AIR , 80mm |
Transmission | Shimano U6020- CUES 10 |
Shifter | Shimano SL-U6000-10 |
Front brakes | Shimano MT410 hydraulic disc brake 180mm |
Rear brakes | Shimano MT410 hydraulic disc brake 160mm |
Brake lever | Shimano MT4100 |
Crank set | Shimano FC-EM600 170mm/CR-ET600 38T |
Chain | Shimano CN-LG500 Linkglide |
Rims | Mach1 25-584 36R |
Saddle | Selle Royal Essenza Athletic |
Seatpost | 30.9/ 350mm |
Handlebar | Ergotec Lady Town 31.8/ 640mm |
Stem | Ergotec Sepia XL, aluminum, adjustable 100mm |
Tires | Schwalbe Johnny Watts |
Wheel size | 27,5" |
Tire size ETRTO | 60-584 |
Motor brand | Shimano |
Motor model | Shimano EP6 |
Motor type | Center |
Motor specifications | 250W – 36V – 85Nm- 25km/h |
Battery model | Shimano BT-EN805-L |
Battery Energy (Wh) | 504 |
Battery placement | Integrated |
Battery charging time | 80% 2,5h , 100% 4h |
Charger | Shimano EC-E8004 |
Display | Shimano SC-EN610 |
Color | black, white |
Recommended height | |
Weight (kg) | 28 |
Helkama CX 10sp 28”: 50cm
fs ‐ Frame size | 50cm |
---|---|
st ‐ Seat tube length | 500 |
tt ‐ Effective top tube length | 620 |
ht ‐ Head tube length | 175 |
hta ‐ Head tube angle | 69 |
sta ‐ Seat tube angle | 74 |
cs ‐ Chainstay length | 465 |
bd ‐ Bottom bracket drop | 60 |
fo ‐ Fork rake/offset | 500 |
s ‐ Stack | 652 |
r ‐ Reach | 433 |
wb ‐ Wheelbase | 1171 |
Helkama CX 10sp 28”: 54cm
fs ‐ Frame size | 54cm |
---|---|
st ‐ Seat tube length | 540 |
tt ‐ Effective top tube length | 635 |
ht ‐ Head tube length | 185 |
hta ‐ Head tube angle | 69 |
sta ‐ Seat tube angle | 74 |
cs ‐ Chainstay length | 465 |
bd ‐ Bottom bracket drop | 60 |
fo ‐ Fork rake/offset | 500 |
s ‐ Stack | 661,5 |
r ‐ Reach | 445 |
wb ‐ Wheelbase | 1186 |
