Helkama Velox Oy

Helkama FE12 12sp suspension

The popular Helkama FE12 e-fatbike with Manitou front suspension, powerful Shimano EP8 motor, sturdy 630 Wh battery capacity and frame-integrated DRL daytime running light.

4999,00

Color:
black
white
Frame size:
15"17"20"
Find closest dealer

The popular Helkama FE12 e-fatbike with Manitou front suspension, powerful Shimano EP8 motor, sturdy 630 Wh battery capacity and frame-integrated DRL daytime running light. FE12 is a versatile e-fatbike that will offer enjoyable riding experiences on snow and gravel, among others.

The FE12 features high-quality Manitou Mastodon front suspension and hefty Schwalbe Jumbo Jim tyres to soften bumps. Shimano hydraulic disc brakes and XT M8100 gear set with Sunringle Mulefut wheels supplement the list of the bike’s high-quality components and make riding smooth. Two impressive colour combinations and three different frame sizes are available.

Powerful and stylish e-fatbike

The Helkama FE12 e-fatbike attracts with its head-turning colours and frame design. Additional boost to riding is given by one of the most powerful motors on the market, the Shimano EP8. The drive unit with an astonishing 85 Nm of torque guarantees an even and natural ride feel. The motor is also one of the lightest and most powerful drive units in its weight category.

The FE12 e-fatbike is powered by a frame-integrated high-quality 630 Wh Shimano BT-E8036 battery with enough capacity for long offroad rides and tours. The LCD colour display of the FE12 model is stylish and clear. You can navigate the menus and switch to the desired assist mode using the handlebar-mounted selection switches.

Great DRL daytime running lamp

Helkama FE12 e-fatbike is equipped with DRL daytime running lights. The frame-integrated light is a stylish small detail that allows you to stand out and be seen in traffic when darkness falls.

  • Motor: Shimano EP8 85 Nm
  • Battery: Shimano 630 Wh
  • Display: Shimano EM800
  • Frame sizes: 15”, 17” and 20”

Shimano E-Tube Project app

You can connect your FE12 by Bluetooth to the Shimano E-Tube Project app for editing the ride settings wirelessly. Adjust the settings to match your riding habits and preferences directly in the app. You can also create two different profiles, switch between them during your ride and review your ride data.

Features

Additional information

Brand

Helkama

Product name
Frame

Aluminum

Frame size

15", 17", 20"

Front fork

Manitou Mastodon Comp 100 mm

Transmission

Shimano M8100 SGS XT 12s Shadow+

Shifter

Shimano SLX SL-M7100

Front brakes

Shimano MT410 hydraulic disc brake 180 mm

Rear brakes

Shimano MT410 hydraulic disc brake 180 mm

Brake lever

Shimano

Crank set

Samox e-Fat 160 mm, 34H

Chain

Sunrace CN12E

Rims

Sunringle Mulefut 80-559 32R

Saddle

Selle Royal Essenza Athletic

Seatpost
Handlebar

Aluminium 35/780 mm

Stem

Fixed 35 mm

Rear axle measurements

12x227x1.0mm

Tires

Schwalbe Jumbo Jim black

Wheel size

26"

Tire size ETRTO

120-559

Motor brand

Shimano

Motor model

Shimano EP8

Motor type

Center

Motor specifications

250W – 36V – 85Nm- 25km/h

Battery model

Shimano E8036

Battery Energy (Wh)

630

Battery placement

Integrated

Battery charging time

80 % 3,2 h/ 100 % 4,8 h

Charger

Shimano E8004

Display
Color

black, white

Recommended height
Frame size Height (cm)
15 150-170
17 160-180
20 175-195
Weight (kg)

15, black: 26,8
15, white: 26,8
17, black: 27,1
17, white: 27,1
20, black: 27,5
20, white: 27,5

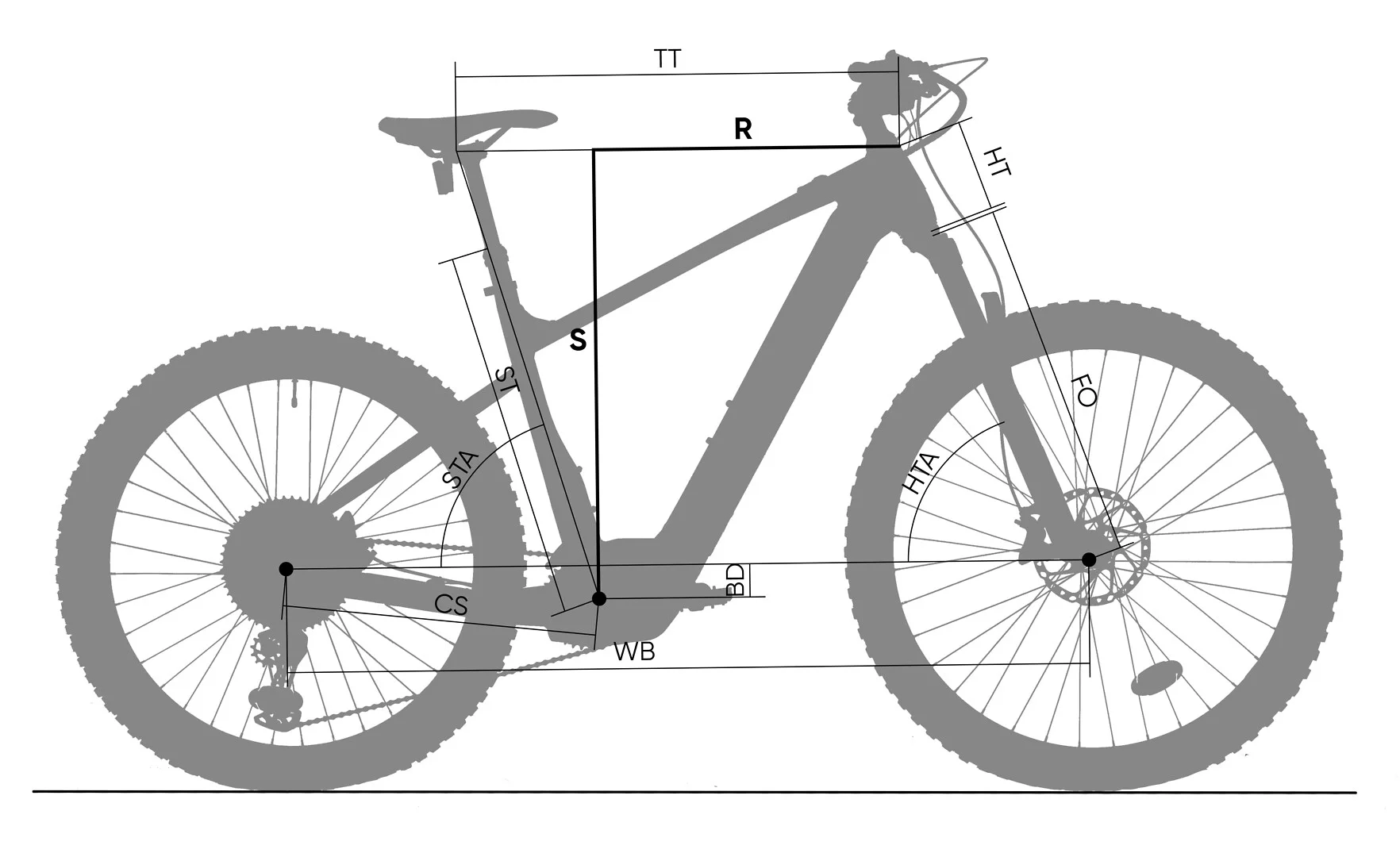

Helkama FE12 12sp suspension: 15

fs ‐ Frame size 15"
st ‐ Seat tube length 381
tt ‐ Effective top tube length 667
ht ‐ Head tube length 140
hta ‐ Head tube angle 67
sta ‐ Seat tube angle 71
cs ‐ Chainstay length 495
bd ‐ Bottom bracket drop 52
fo ‐ Fork rake/offset 511
s ‐ Stack 640
r ‐ Reach 454
wb ‐ Wheelbase 1229

Helkama FE12 12sp suspension: 17

fs ‐ Frame size 17"
st ‐ Seat tube length 432
tt ‐ Effective top tube length 677
ht ‐ Head tube length 140
hta ‐ Head tube angle 67
sta ‐ Seat tube angle 71
cs ‐ Chainstay length 495
bd ‐ Bottom bracket drop 52
fo ‐ Fork rake/offset 511
s ‐ Stack 640
r ‐ Reach 464
wb ‐ Wheelbase 1237

Helkama FE12 12sp suspension: 20

fs ‐ Frame size 20"
st ‐ Seat tube length 508
tt ‐ Effective top tube length 685
ht ‐ Head tube length 140
hta ‐ Head tube angle 67
sta ‐ Seat tube angle 71
cs ‐ Chainstay length 495
bd ‐ Bottom bracket drop 52
fo ‐ Fork rake/offset 511
s ‐ Stack 640
r ‐ Reach 474
wb ‐ Wheelbase 1247
