Motor
Shimano E5100 50Nm 250W 25km/h
The Shimano E5100 motor offers a smooth yet powerful natural ride feel for day-to-day riding.
Battery
Shimano BT-E6000 418Wh
A high quality lithium-ion battery that lasts a long time, up to 1,000 charges without significant power loss!
Display
Shimano SC-E5000
A clear and compact display with easily accessible assist level switches. Mounted discreetly on the handlebar.
AVS
AtranVeloSystem
AtranVeloSystem or AVS is a patented system for securely attaching accessories to your bike. It contains a wide range of high-quality bags and baskets for different situations. All accessories are modular and compatible with both front and rear racks, so you can install them in the way that suits you bike.

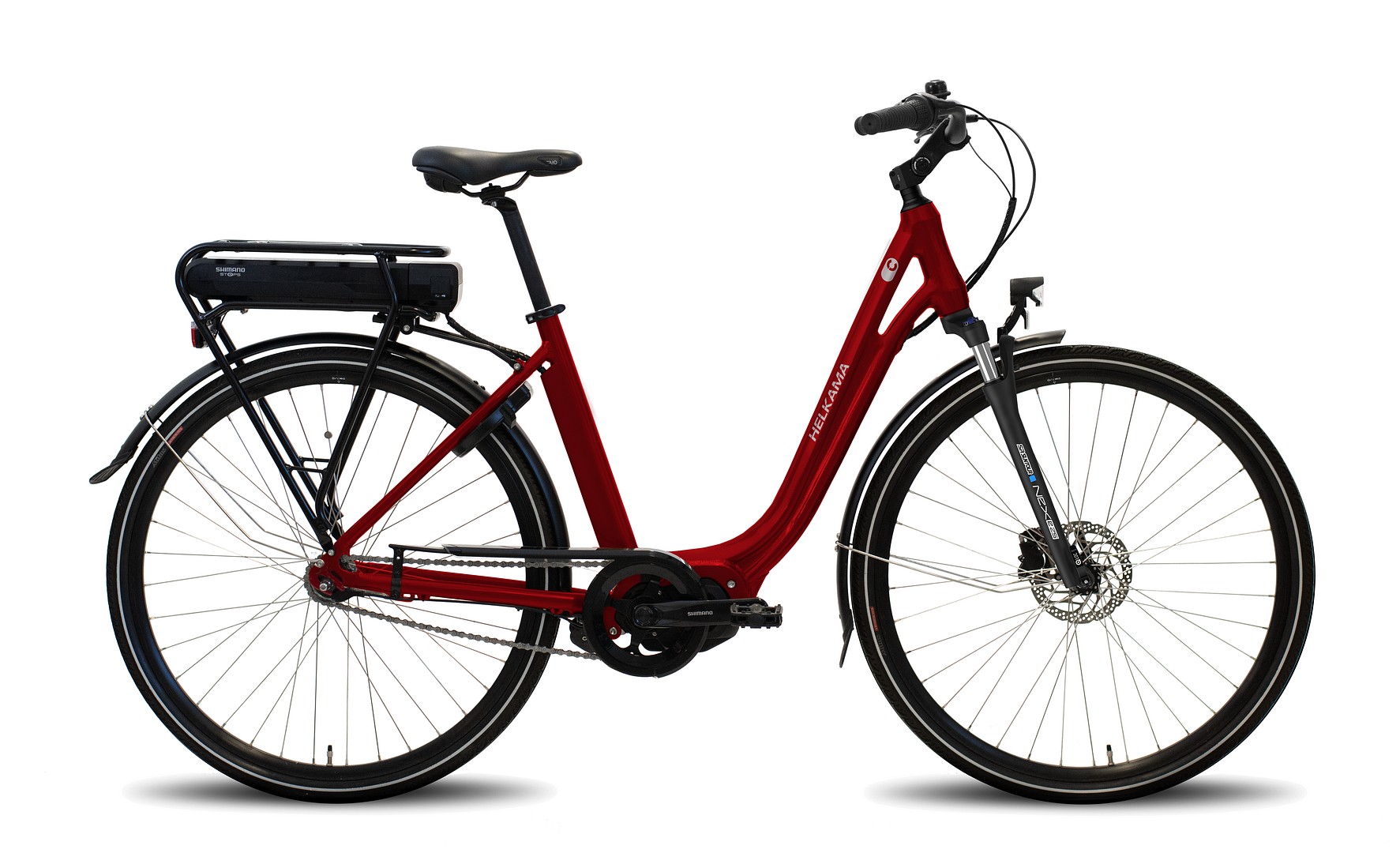

Helkama C 7sp 28”
2599,00 €
The Helkama C electric bike is a stylish urban electric bike with a classic frame design and seven gears. The bicycle offers all the essential accessories for effortless daily use in urban conditions, and it is suited for many, thanks to its low leg rise height.
Description
For easy urban mobility
The Helkama C bike is a low-frame easy-to-use city bicycle for agile urban mobility: it is ideal for everyday use and commuting. Due to its ease of use, it is a great ride for e-bike beginners. The bike features a low leg rise height, upright riding position and a single frame model suitable for everyone.
The C city e-bike features an easily removable pannier rack battery for charging and front suspension to soften bumps in the road for a comfortable ride. High-quality components and domestic manufacturing guarantee carefree mileage.
All essential accessories
The C city e.bike has a Shimano mid-mounted motor that assists pedalling up to a speed of 25 kilometres per hour. Helkama C is equipped with a Shimano 418 Wh battery on the pannier rack. The battery is easy to remove and carry inside for charging, but it can also be charged while it’s still on the bike.
The easy-to-read SC-E5000 display shows you the assist level, speed, distance and battery charge, among other things. The display also works as a selection switch for adjusting the three assist levels.
Helkama C has all the essential accessories you need for city cycling: lock, stand and front and rear light. Hermmans handlebar grips are made of bio-based material in Finland. The bike has a sleek but sturdy pannier rack with the AtranVeloSystem for attaching accessories. This means that you can easily attach the bags and baskets from the product family by simply clicking them into place.
• Motor: Shimano E5100 50 Nm
• Battery: Shimano BT-E6000 418 Wh
• Display: Shimano SC-E5000
• Herrmans front and rear light
Additional information
Product name | Helkama C 7v 28” |
---|---|
Frame | Aluminum |
Frame size | 48cm, 54cm |
Front fork | SR Suntour NEX E25 63mm |
Transmission | Shimano Nexus 7 hub gear |
Shifter | Shimano Nexus 7 revo shift |
Front brakes | Shimano MT200 hydraulic disc brake 160mm |
Rear brakes | Foot brake |
Brake lever | Shimano MT201 |
Crank set | Shimano FC-E5010 170mm/38H |
Chain | KMC |
Rims | Mach1 21-622 36R black |
Saddle | Selle Royal Rio Plus |
Seatpost | 27,2/350mm black |
Handlebar | Ergotec City Cruiser 31,8/640mm |
Stem | Ergotec Sepia XL, aluminum, adjustable 100mm |
Rear axle measurements | |
Tires | Schwalbe Energizer Plus puncture-proof with reflective sidewall |
Wheel size | 28" |
Tire size ETRTO | 40-622 |
Motor brand | Shimano |
Motor model | E5100 |
Motor type | Center |
Motor specifications | 250W – 36V – 50Nm- 25km/h |
Battery model | Shimano BT-E6000 |
Battery Energy (Wh) | 418 |
Battery placement | Rack |
Battery charging time | 80% 3,5h , 100% 6,5h |
Charger | Shimano EC-E6002 |
Display | Shimano SC-E5000 |
Color | black, red |
Weight (kg) | 25,5 |
Helkama C 7sp 28”: 54cm
fs ‐ Frame size | 54cm |
---|---|
st ‐ Seat tube length | 540 |
tt ‐ Effective top tube length | 610,6 |
ht ‐ Head tube length | 175 |
hta ‐ Head tube angle | 69 |
sta ‐ Seat tube angle | 71 |
cs ‐ Chainstay length | 485 |
bd ‐ Bottom bracket drop | 50 |
fo ‐ Fork rake/offset | 462 |
s ‐ Stack | |
r ‐ Reach | |
wb ‐ Wheelbase | 1120,4 |
Helkama C 7sp 28”: 48cm
fs ‐ Frame size | 48cm |
---|---|
st ‐ Seat tube length | 480 |
tt ‐ Effective top tube length | 610,6 |
ht ‐ Head tube length | 175 |
hta ‐ Head tube angle | 69 |
sta ‐ Seat tube angle | 71 |
cs ‐ Chainstay length | 485 |
bd ‐ Bottom bracket drop | 50 |
fo ‐ Fork rake/offset | 462 |
s ‐ Stack | |
r ‐ Reach | |
wb ‐ Wheelbase | 1120,4 |
