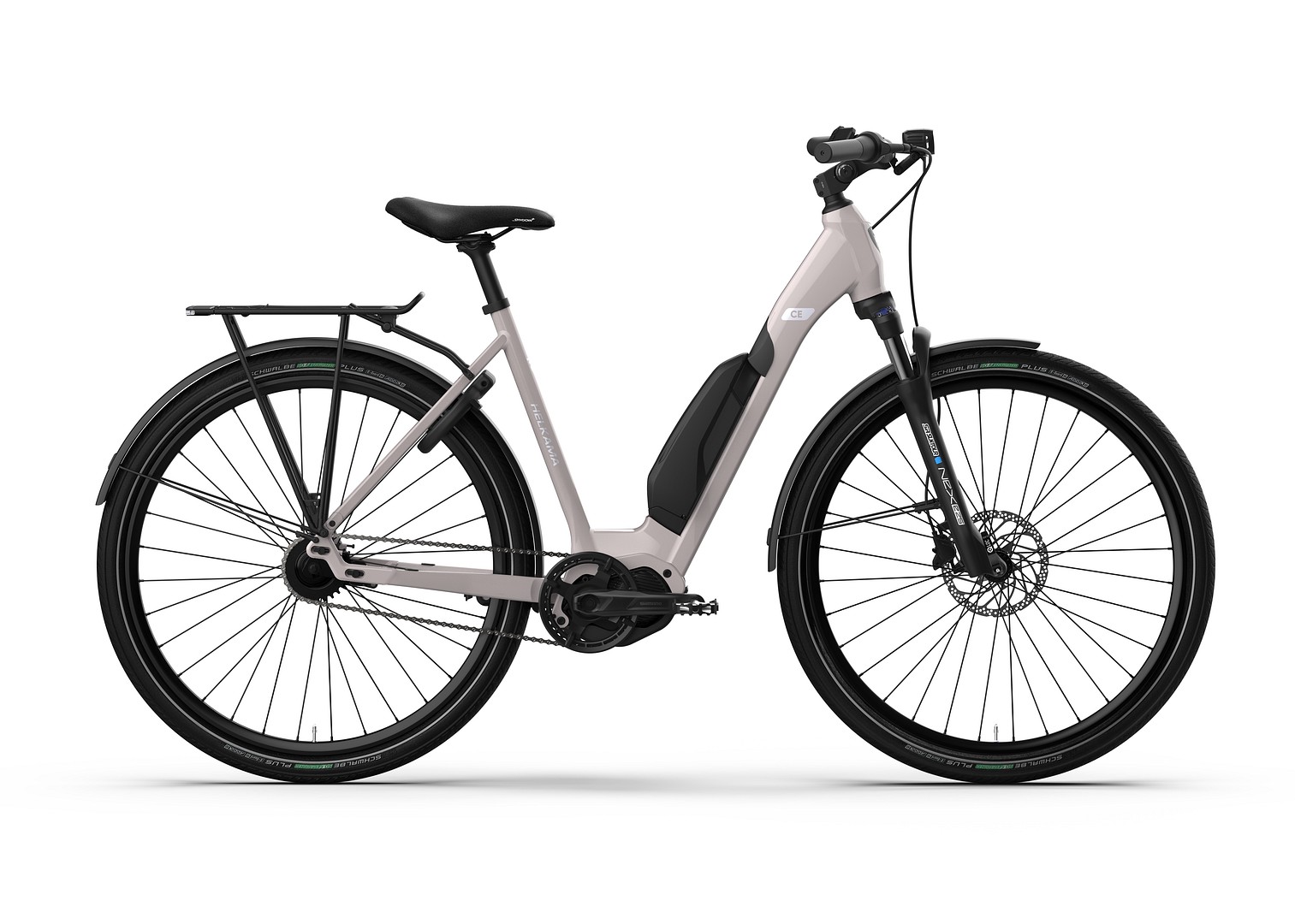

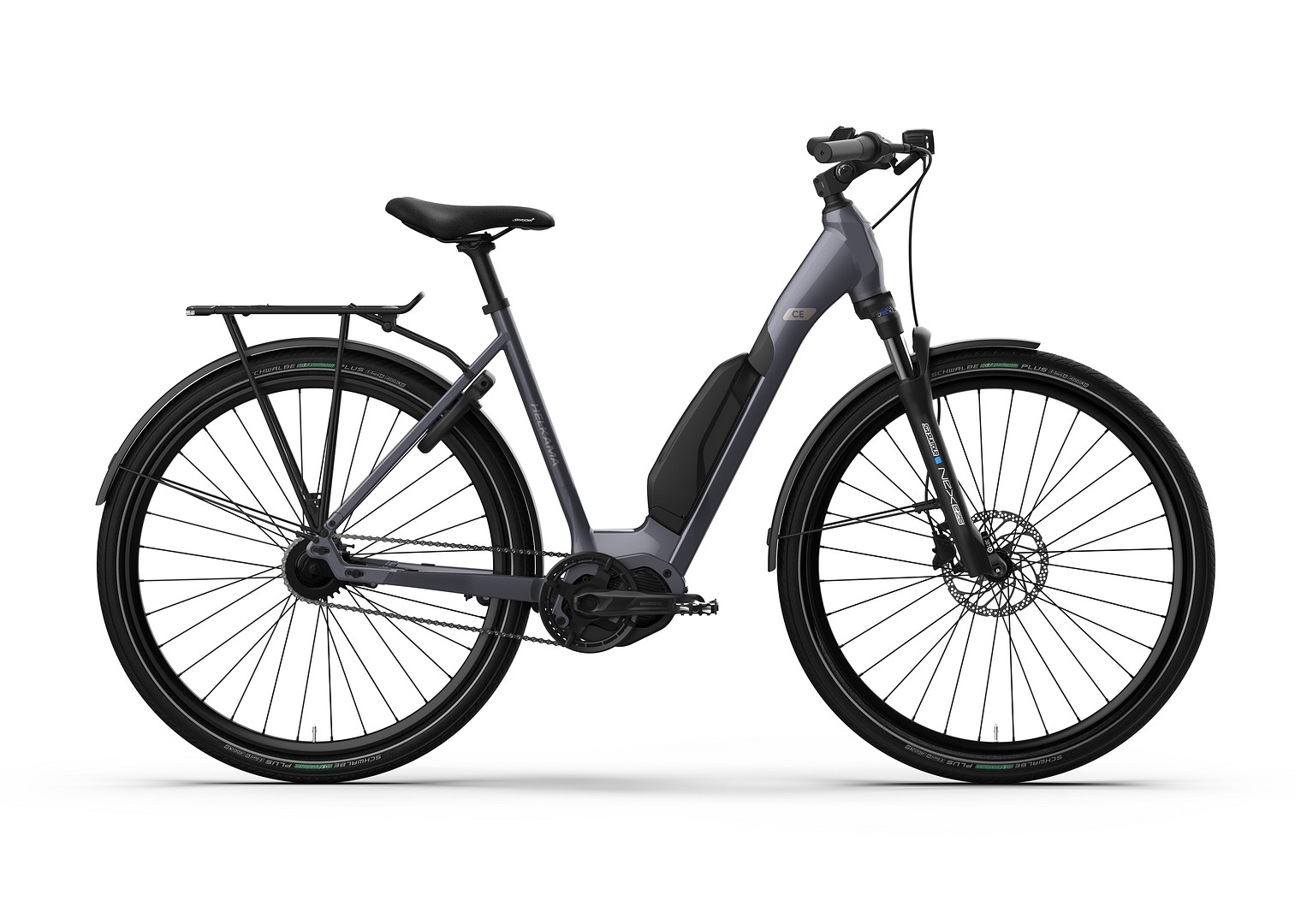

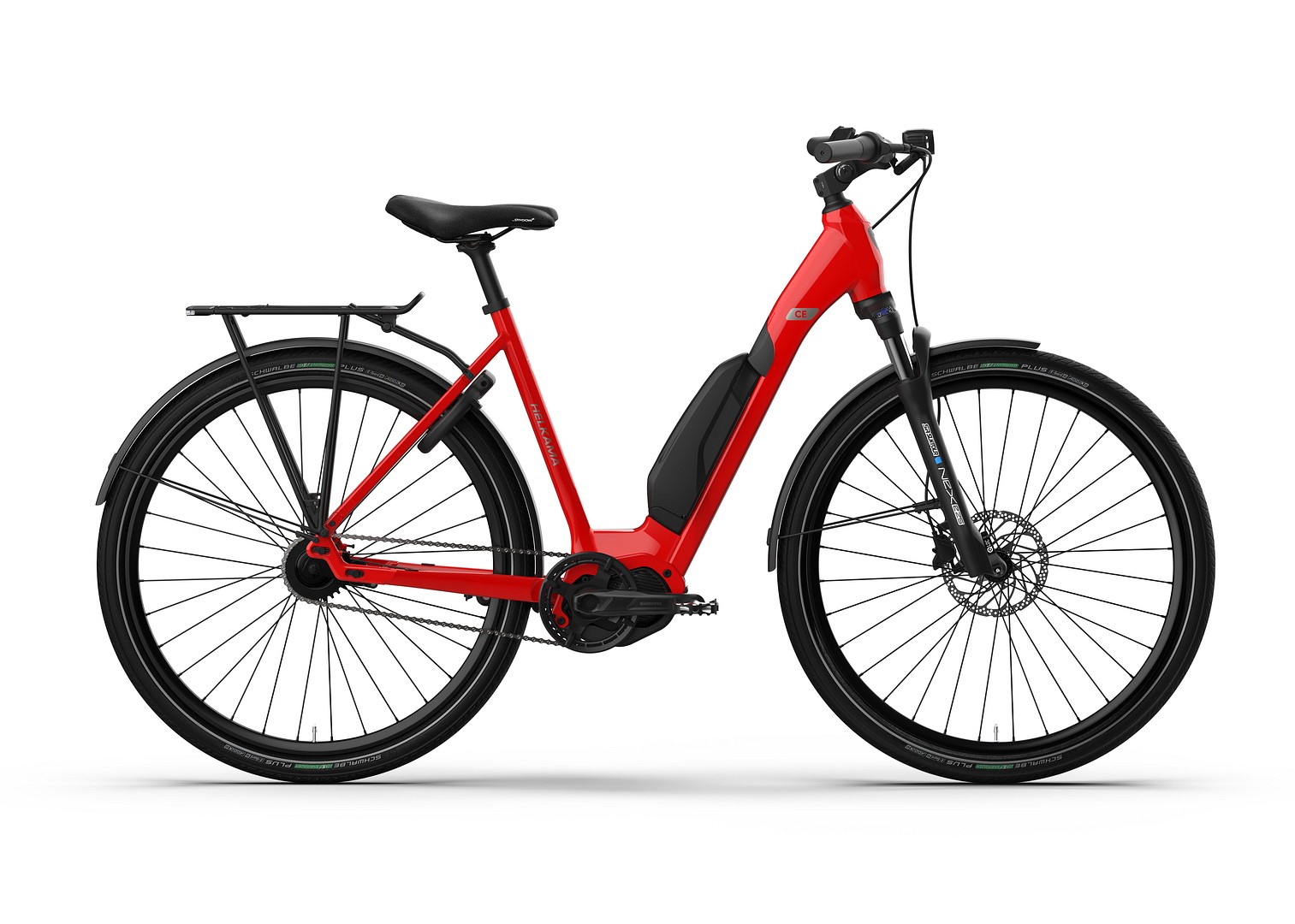

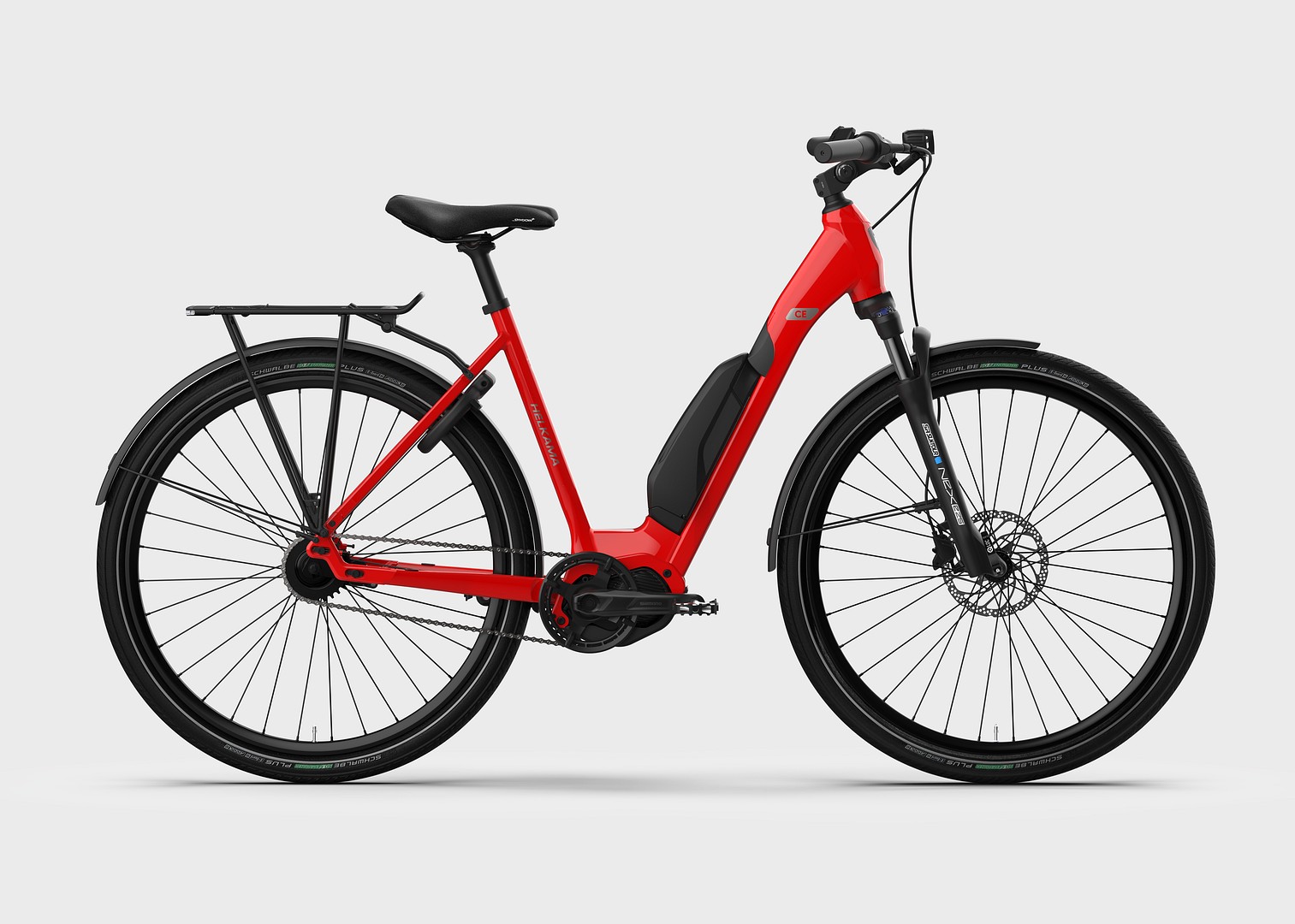

Helkama CE 5v 28″
- Coming in Spring 2026!
Easy and comfortable city e-biking.
3199,00 €
Find closest dealerThe Helkama CE 5-speed electric bike is designed for urban cyclists who value effortless riding, comfort, and stylish design.
The low-step aluminum frame makes getting on and off easy, making it an excellent choice for commuting and everyday errands. The Shimano EP500 motor delivers 60 Nm of torque and operates smoothly in any situation. It supports your pedaling naturally, making riding light even on hills and against headwinds. The 504 Wh Shimano frame battery provides reliable range for everyday rides. The battery is easy to remove for charging and fits seamlessly into the frame's sleek design. The Shimano 5-speed Nexus hub gear system is user-friendly and maintenance-free — a perfect choice for city cycling. The gears shift smoothly even when stopped, ensuring a seamless ride in urban traffic.
CE city e-bike

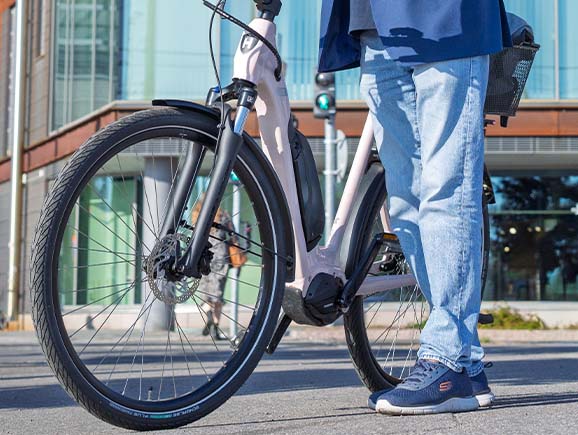

A low frame design is convenient in traffic
The CE electric bike features a low-step frame suitable for many riders. Its low standover height makes city riding convenient – you can easily stop at traffic lights and quickly hop back on the saddle.
Well-equipped
Helkama CE comes with all the essential features you need for city cycling: a lock, kickstand, mudguards, and both front and rear lights. The equipment is topped off with a DRL daytime running light that stays on whenever the motor is running.

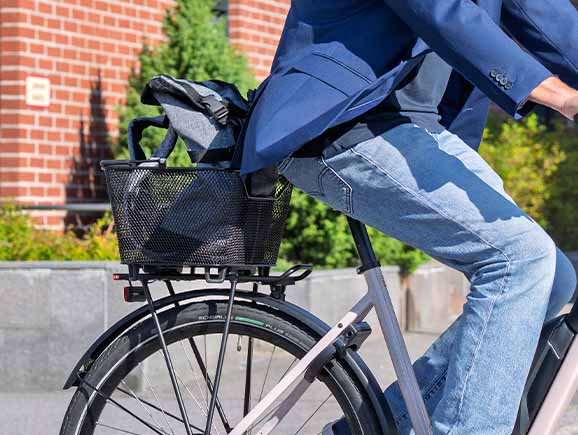

Add a basket or a pannier
The bike features a sleek yet sturdy rear rack with the AtranVeloSystem for attaching accessories. This allows you to effortlessly click on a range of bags and baskets.
Motor
Shimano EP500 60Nm 250W 25km/h
A compact, powerful, and quiet motor delivers seamless assistance for a natural riding experience. The EP500 e-bike system provides smooth, consistent power support, making even long rides effortless.
Battery
Shimano EN605 504Wh
A compact frame battery with a low center of gravity ensures a natural riding experience.
Display
Shimano EN500
You can effortlessly monitor and adjust your e-bike intuitively. The display provides detailed information such as speed, battery level, range, and the selected assist mode. In addition, you can easily switch between different assist settings and customize them according to your needs and the terrain conditions.
Additional information
| Product name | Helkama CE 5v 28" |
|---|---|
| Frame | Aluminum |
| Frame size | 48 cm, 52 cm |
| Front fork | SF24 NEX-E25 NLO DS 63mm |
| Transmission | Shimano Nexus 5 |
| Gear amount | 5 |
| Shifter | Shimano Nexus 5 |
| Front brakes | Shimano MT200 hydraulic disc brake 160mm |
| Rear brakes | Foot brake |
| Brake lever | Shimano MT200 |
| Crank set | Shimano EM600, 170mm/Shimano ET600 38T |
| Chain | KMC |
| Rims | Mach1 Traxx 21-622, musta, 32H |
| Saddle | Selle Royal Nuvola Skingel Moderate Lady |
| Seatpost | 30,9 x 300 mm |
| Handlebar | Ergotec Lady Town 640mm, alumiini |
| Stem | Ergotec Sepia XL 100mm, säädettävä |
| Rear axle measurements | Fixed 135mm/187mm |
| Tires | Schwalbe Energizer Plus |
| Wheel size | 28" |
| Tire size ETRTO | 50-622 |
| Motor brand | Shimano |
| Motor model | Shimano EP500 |
| Motor specifications | 250W – 36V – 60Nm- 25km/h |
| Battery model | Shimano EN605 |
| Battery Energy (Wh) | 504 |
| Battery placement | Frame battery |
| Battery charging time | 80 % 4 h/ 100 % 7,5 h |
| Charger | Shimano E6002 |
| Display | Shimano EN500 |
| Color | gray lilac, italian red, anthracite |
| Lukko | AXA Atlas L |
| Painoraja (kg) | 135 |
| Weight (kg) | 27 |
Helkama CE 5v 28": 48-cm
| fs ‐ Frame size | 48 cm |
|---|---|
| st ‐ Seat tube length | 480 |
| tt ‐ Effective top tube length | 605 |
| ht ‐ Head tube length | 145 |
| hta ‐ Head tube angle | 71 |
| sta ‐ Seat tube angle | 73 |
| cs ‐ Chainstay length | 460 |
| bd ‐ Bottom bracket drop | 65 |
| fo ‐ Fork rake/offset | 473 |
| s ‐ Stack | 635 |
| r ‐ Reach | 410 |
| wb ‐ Wheelbase | 1109 |
Helkama CE 5v 28": 52-cm
| fs ‐ Frame size | 52 cm |
|---|---|
| st ‐ Seat tube length | 520 |
| tt ‐ Effective top tube length | 620 |
| ht ‐ Head tube length | 155 |
| hta ‐ Head tube angle | 71 |
| sta ‐ Seat tube angle | 73 |
| cs ‐ Chainstay length | 460 |
| bd ‐ Bottom bracket drop | 65 |
| fo ‐ Fork rake/offset | 473 |
| s ‐ Stack | 644 |
| r ‐ Reach | 422 |
| wb ‐ Wheelbase | 1124 |
