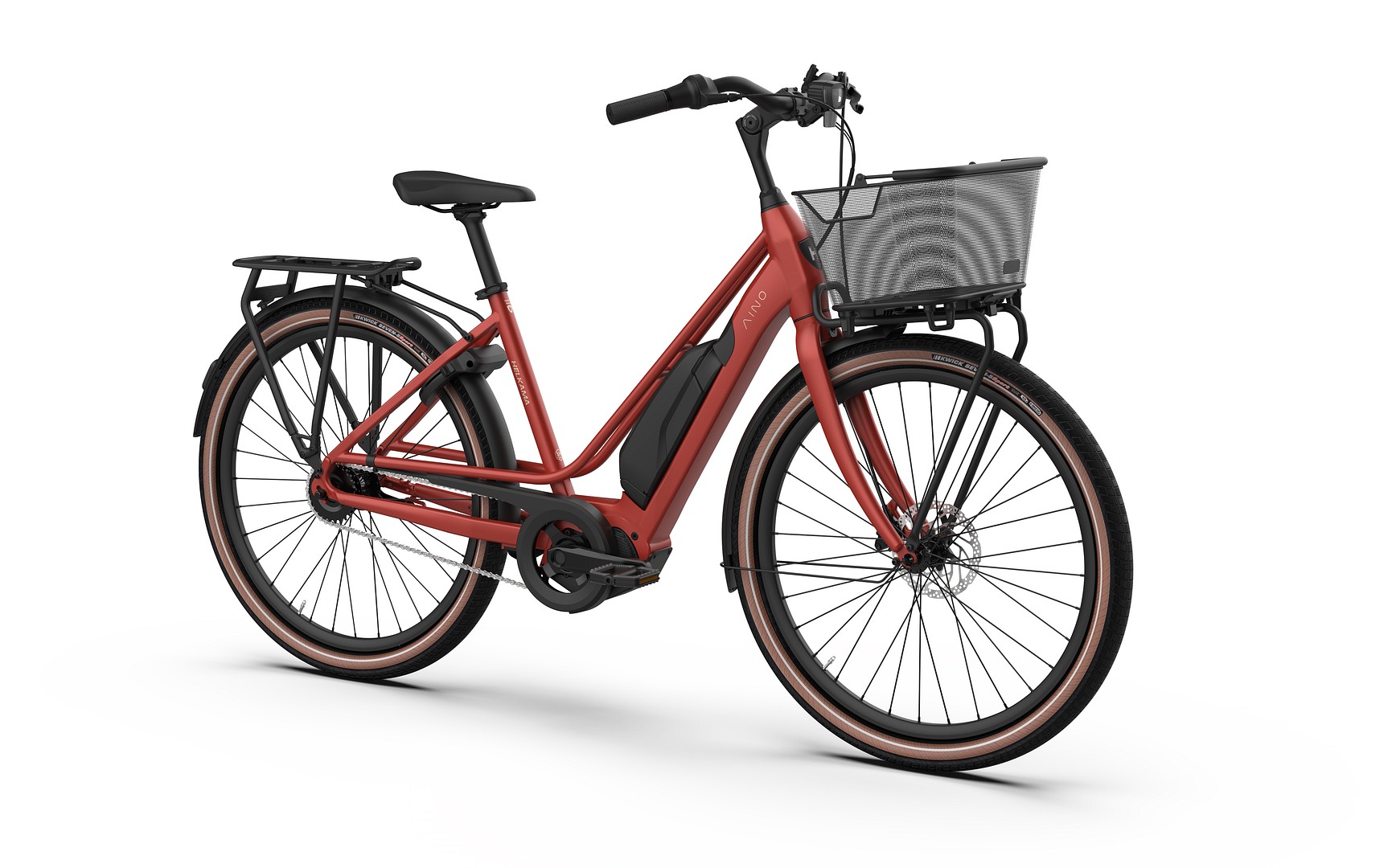

Helkama e-Aino 5sp electric bicycle

Modern and stylish urban e-bike with foot and hand brakes.

2999,00€

Find closest dealer

The Helkama e-Aino is a stylish city e-bike that blends traditional chain drive with the comfort of a modern electric bicycle.

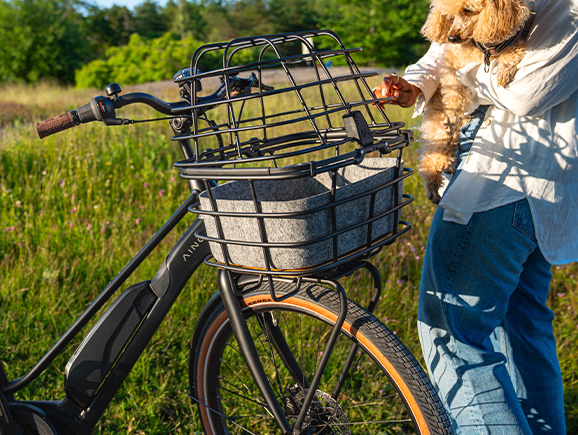

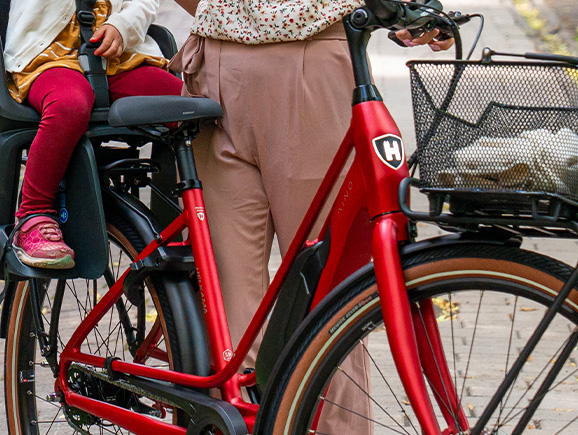

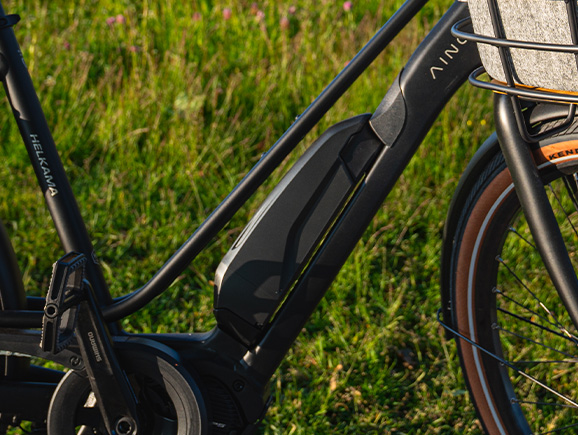

The reliable 418 Wh integrated battery offers just the right amount of range for daily commuting, work trips, and leisure rides. Shimano’s electric assist makes pedaling light and effortless, helping you move smoothly both in the city and across varied routes. The electric motor gives you the freedom to move on your own terms, making everyday journeys more convenient. The low-step frame makes the bike easy to use and effortless to get on and off. Easy-to-use hub gears ensure smooth riding in all daily situations. A practical front carrier and basket make it easy to transport your belongings, whether you’re traveling to work, shopping, or running errands. The streamlined design, carefully finished details, and high-quality components make the e-Aino a reliable electric bike for active everyday cycling and city riding. Designed for real needs, it’s built to be a dependable partner in your daily mobility for years to come. Reliable electric assist and thoughtful features make cycling enjoyable, whatever the season.

e-Aino city e-bike

Riding position
Upright Active Race
Chassis suitability
Permanent pavement Graveled road Needle trail Rhizome & pebble Deep snow & sand
Features
Components

Additional information

Product name
Frame

Alumiini

Frame size

48 cm, 52 cm

Front fork
Transmission

Shimano Nexus 5

Gear amount

5

Shifter

Shimano Nexus 5

Front brakes

Shimano MT200 hydraulic disc brake 160mm

Rear brakes

Foot brake

Brake lever

Shimano MT200

Crank set
Chain

KMC

Rims

Mach1 Trucky 30-584, 32H

Saddle

Selle Royal Essenza+ Moderate Wide

Seatpost

30,9 x 300 mm

Handlebar

Ergotec City Cruiser, halkaisija: 31,8 mm, leveys: 640 mm, nousu: 41 mm, taivutus: 37°

Stem

Ergotec Sepia XL 70mm, adjustable

Rear axle measurements

Fixed 135mm/187mm

Tires

Kenda Kwik Seven 5

Wheel size

27,5"

Tire size ETRTO

52-584

Motor brand

Shimano

Motor model

Shimano EP5

Motor specifications

250W – 36V – 60Nm- 25km/h

Battery model

Shimano EN604

Battery Energy (Wh)

418

Battery placement

Frame battery

Battery charging time

80% 3,5h/100% 6,5h

Charger

Shimano E6002

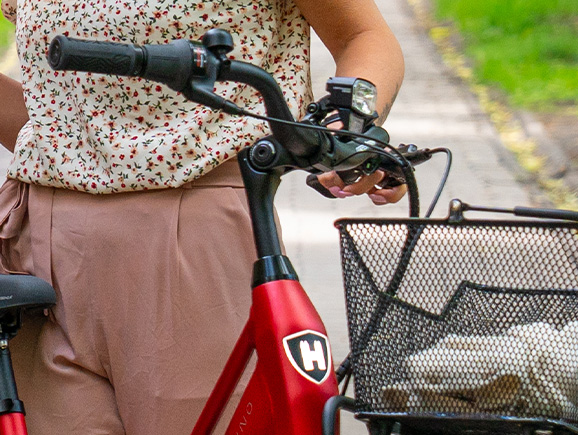

Display

Shimano EN500

Color

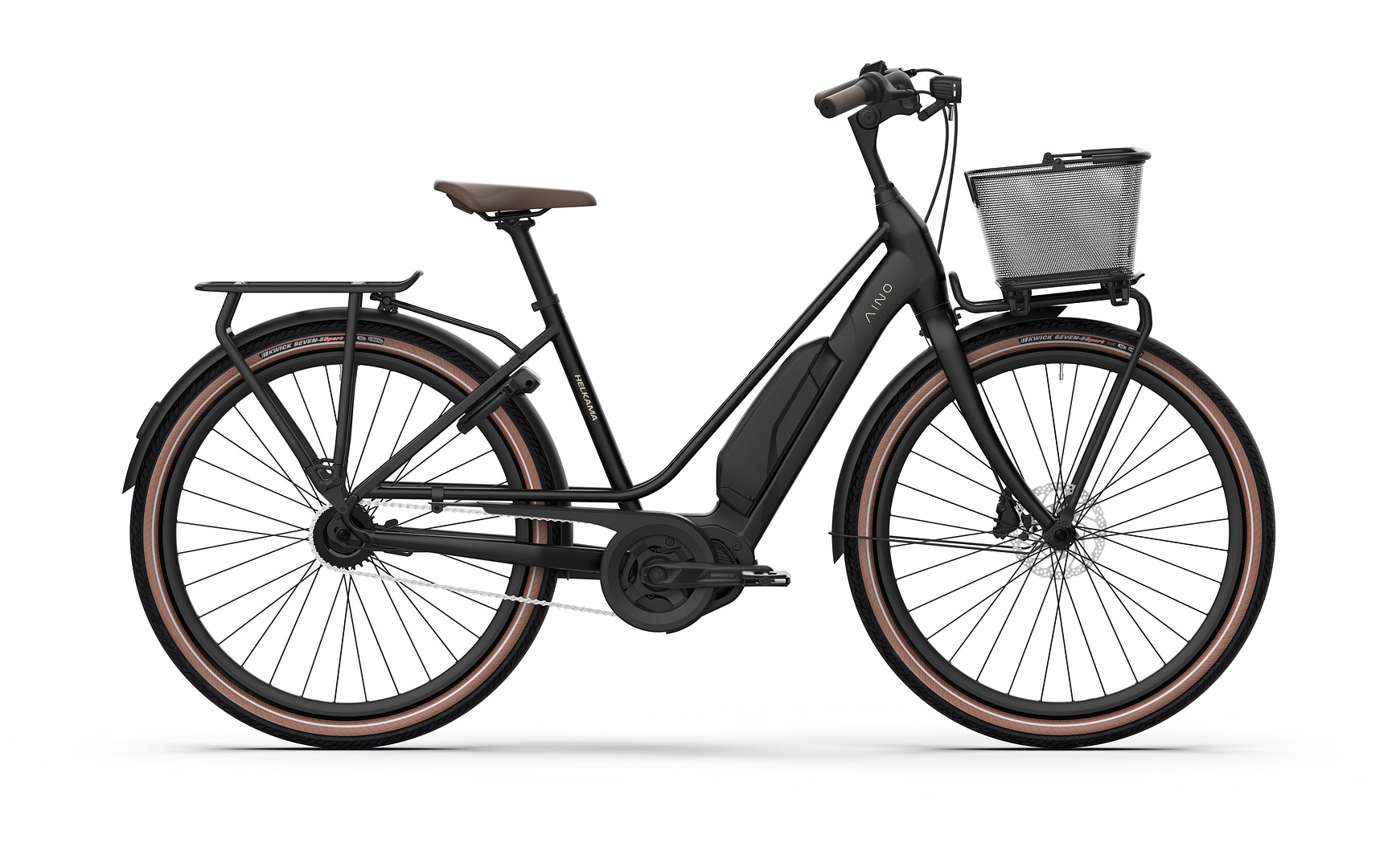

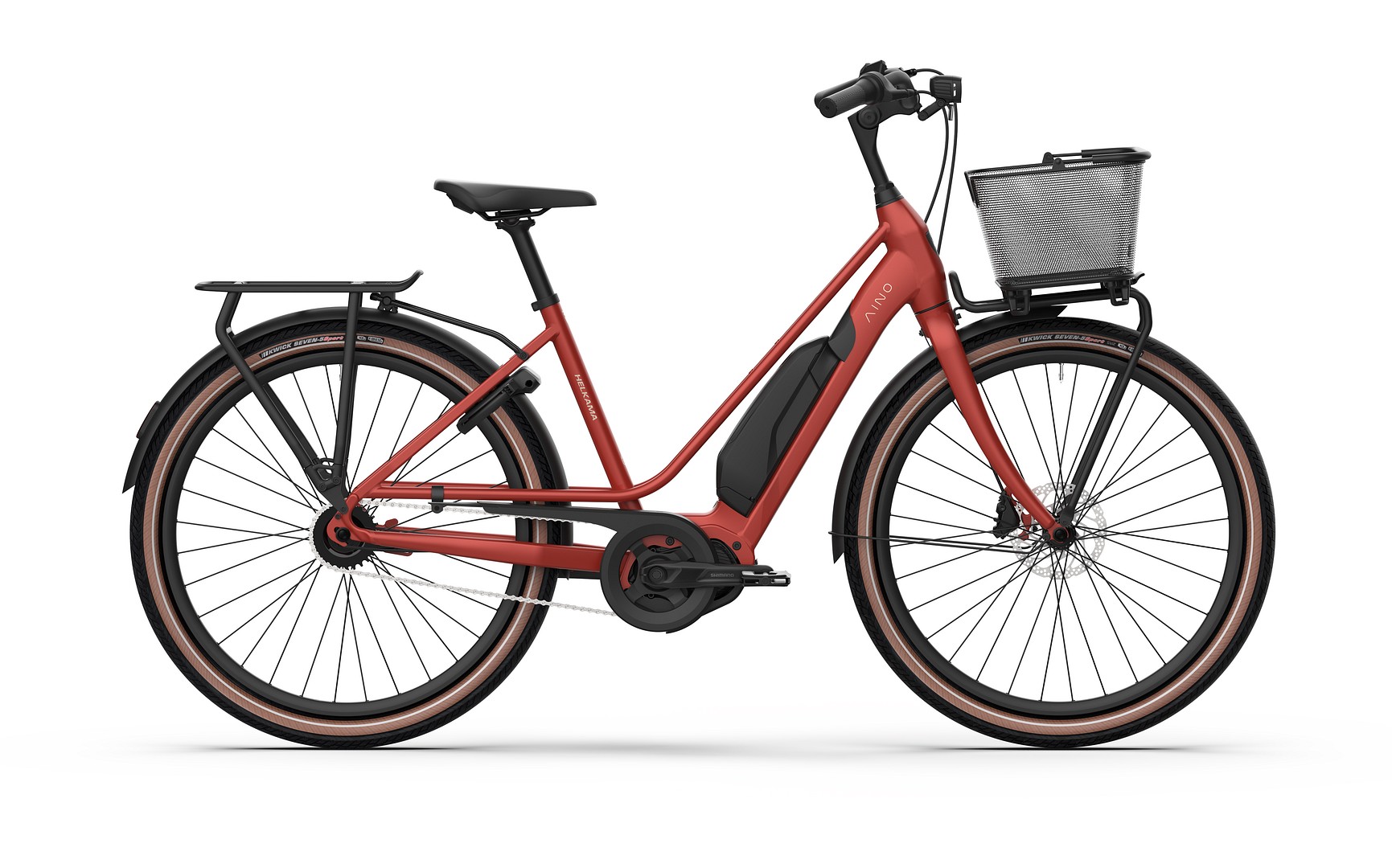

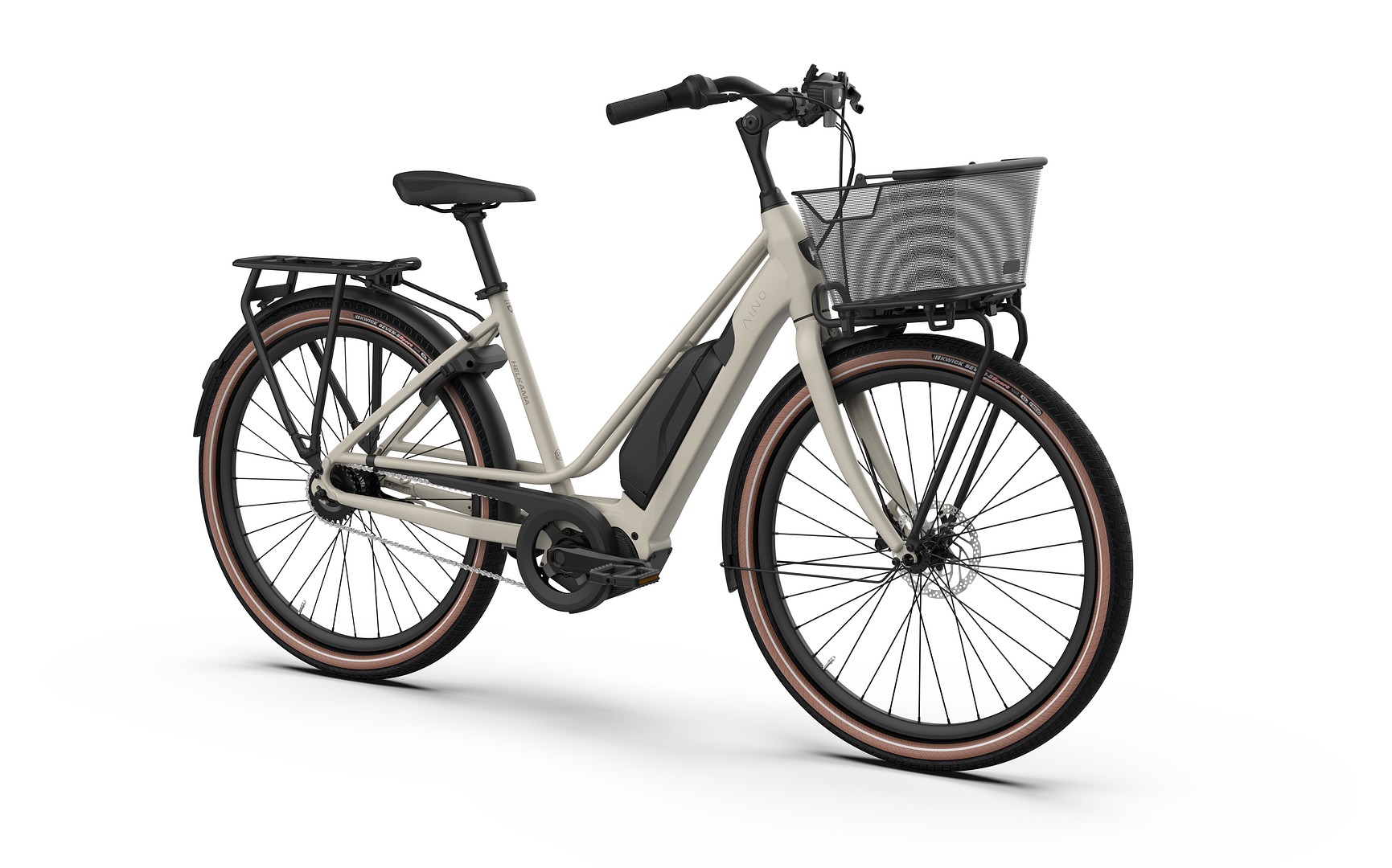

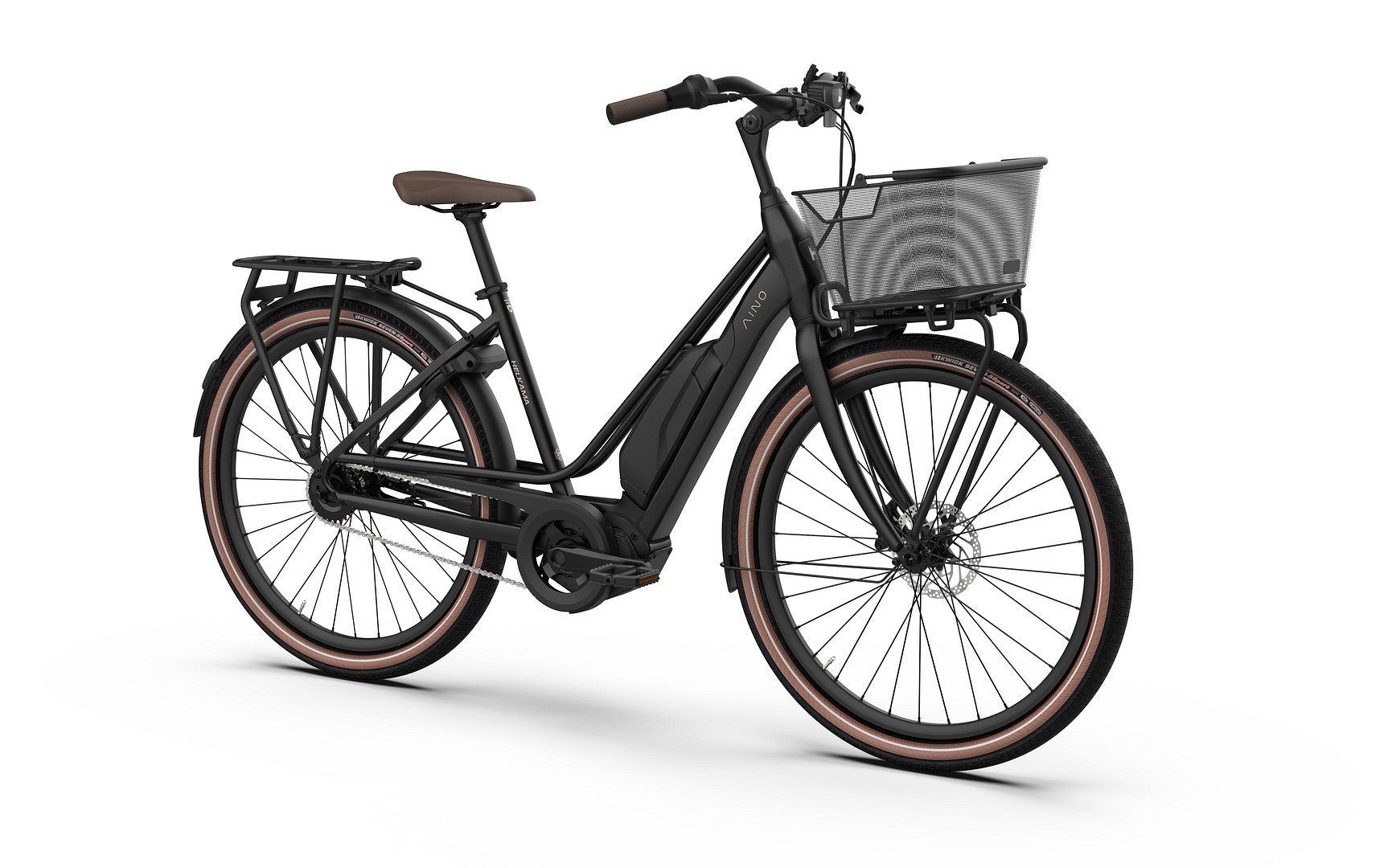

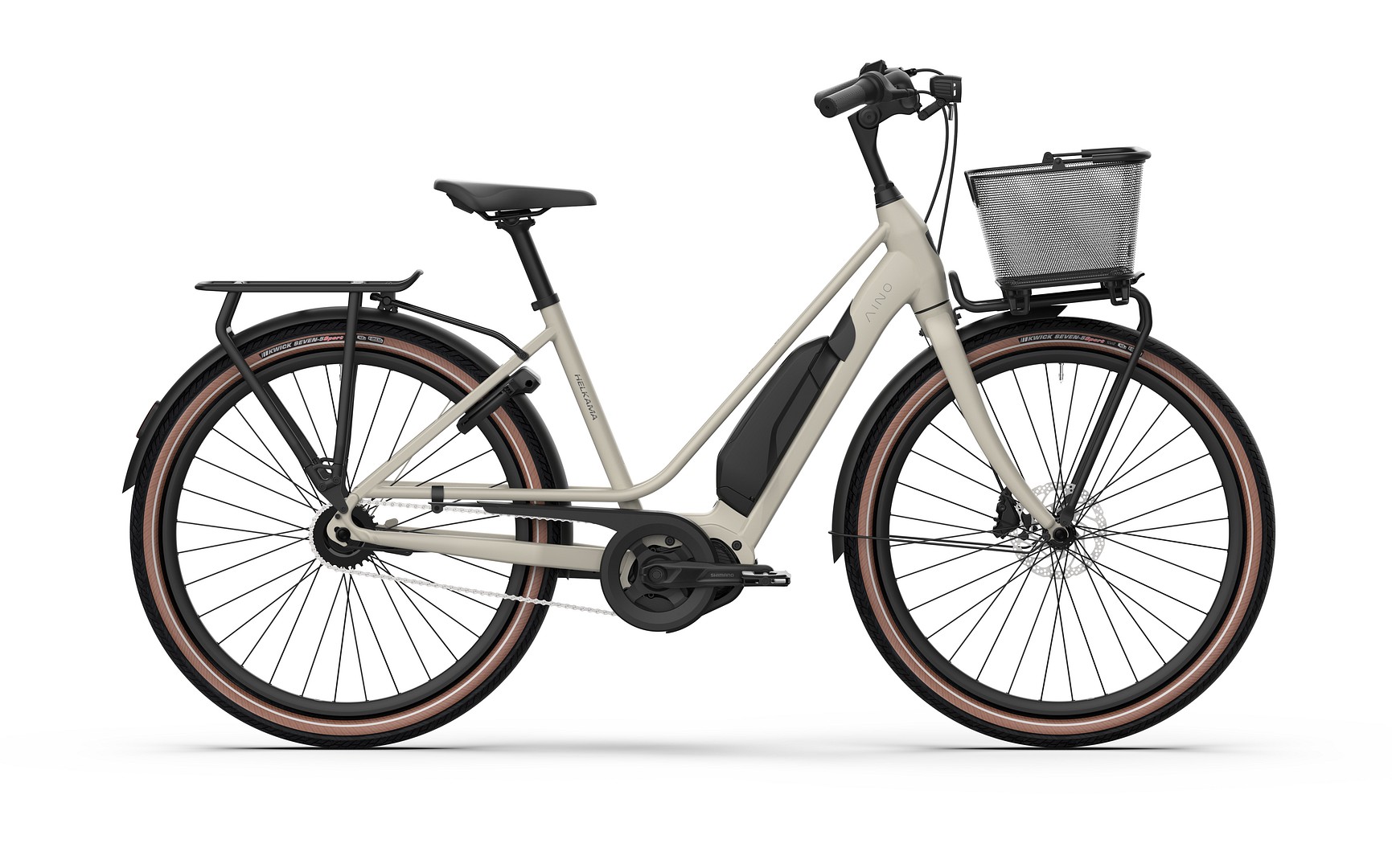

black, red, white clay

Lock

AXA Atlas L

Weight limit (kg)

135

Luggage rack weight limit
Weight (kg)

52-cm, white-clay: 28,2
52-cm, black: 28,2
52-cm, red: 28,2
48-cm, red: 28
48-cm, white-clay: 28
48-cm, black: 28

Helkama e-Aino 5sp electric bicycle: 52-cm

fs ‐ Frame size 52 cm
st ‐ Seat tube length 520
tt ‐ Efektiivinen vaakaputki 638
ht ‐ Head tube length 200
hta ‐ Head tube angle 68
sta ‐ Efektiivinen istuinkulma 68
cs ‐ Chainstay length 510
bd ‐ Bottom bracket drop 62
fo ‐ Fork rake/offset 420
s ‐ Stack 618
r ‐ Reach 388
wb ‐ Wheelbase 1166

Helkama e-Aino 5sp electric bicycle: 48-cm

fs ‐ Frame size 48 cm
st ‐ Seat tube length 480
tt ‐ Efektiivinen vaakaputki 620
ht ‐ Head tube length 180
hta ‐ Head tube angle 68
sta ‐ Efektiivinen istuinkulma 68
cs ‐ Chainstay length 510
bd ‐ Bottom bracket drop 62
fo ‐ Fork rake/offset 420
s ‐ Stack 600
r ‐ Reach 378
wb ‐ Wheelbase 1149
