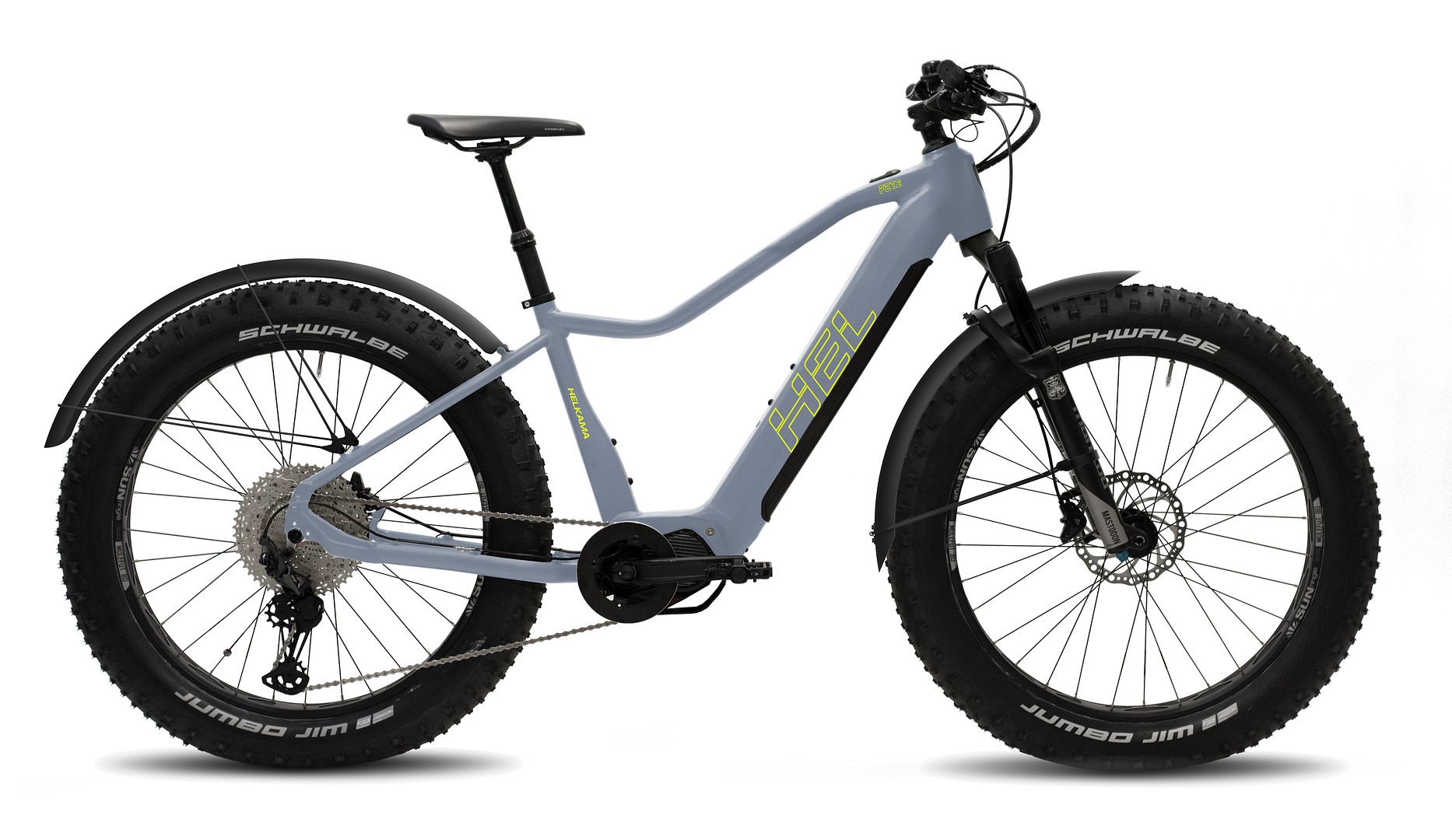

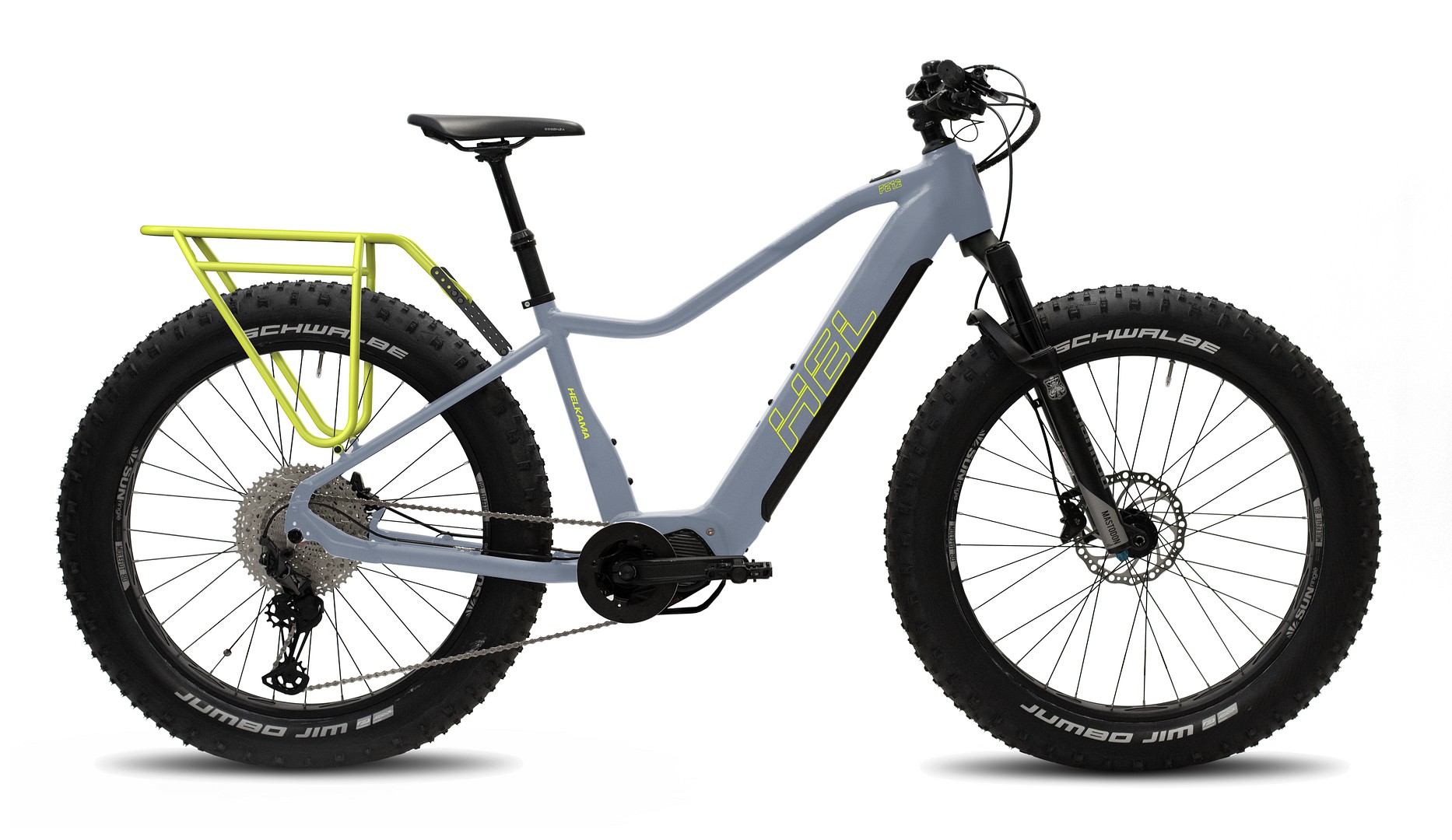

Helkama FE12 12sp 708Wh
Helkama’s popular FE12 e-fatbike with powerful Shimano EP801 2nd Gen motor, sturdy 708 Wh Darfon battery capacity, Shimano MT520 disc brakes and frame-integrated DRL daytime running light. Modern 2024 model with the latest technology.
4499,00 €
Find closest dealerHelkama’s popular FE12 e-fatbike with powerful Shimano EP801 2nd Gen motor, sturdy 708 Wh Darfon battery capacity, Shimano MT520 disc brakes and frame-integrated DRL daytime running light. Modern 2024 model with the latest technology.
FE12 is a versatile e-fatbike that will offer enjoyable riding experiences on snow and gravel, among others. The high-quality Manitou Mastodon front suspension and hefty Schwalbe Jumbo Jim 4.8” tyres soften bumps. The powerful Shimano MT520 hydraulic disc brakes stop the bike effectively and the reliable Shimano XT M8100 gear set shifts gears accurately. The suspension seatpost makes riding even more comfortable and versatile.
High battery capacity for longer trips
The Helkama FE12 e-fatbike attracts with its head-turning colours and frame design. The bicycle features a Shimano EP801 2nd Gen motor, one of the most powerful and lightest drive units on the market. The 85 Nm of torque is the heart of the FE12 fatbike, guaranteeing an even and natural ride feel. The hefty 708 Wh Darfon 19.2Ah E4COM battery is integrated to the frame; its huge capacity allows for long offroad trips and tours.
The LCD colour display of the FE12 model is stylish and clear. You can navigate the menus and switch to the desired assist mode using the handlebar-mounted selection switches.
Great DRL daytime running lamp
Helkama FE12 e-fatbike is equipped with DRL daytime running lights. The frame-integrated light is a stylish small detail that allows you to stand out and be seen in traffic when darkness falls.
- Motor: Shimano EP801 85 Nm
- Battery: Darfon E4COM 708 Wh
- Display: ShimanoSC-EM800
- Frame sizes: 15”, 17.5” and 20”
Shimano E-Tube Project app
You can connect your FE12 by Bluetooth to the Shimano E-Tube Project app for editing the ride settings wirelessly. Adjust the settings to match your riding habits and preferences directly in the app. You can also create two different profiles, switch between them during your ride and review your ride data.
MOTOR
Shimano EP801 85Nm 250W 25KM/H
Smart drive unit that offers controllable high-performance power with a maximum torque of 85 Nm over an even wider cadence range. The result is streamlined power and improved control that provide a natural ride feel.
BATTERY
Darfon E4COM 708 Wh
Huge frame-integrated 708Wh 19.2 Ah Darfon E4COM battery with enough capacity for long offroad rides on a single charge.
DISPLAY
Shimano SC-EM800
All ride settings and colour-coordinated assist levels from a 1.6 "LCD at a glance. The integrated display does not take all the space over the handlebar and the placement on the handlebar is safe. The display can also be read in bright sunlight.
DRL
Daytime running lamp
The frame-integrated light is a stylish small detail that allows you to stand out and be seen in traffic when darkness fabike
Additional information
| Brand | Helkama |
|---|---|
| Product name | |
| Frame | Aluminum |
| Frame size | 15", 17,5", 20" |
| Front fork | Manitou Mastodon Comp 100 mm |
| Transmission | Shimano M8100 SGS XT 12s Shadow+ |
| Shifter | Shimano SLX SL-M7100 |
| Front brakes | Shimano MT520 hydraulic disc brake 180 mm |
| Rear brakes | Shimano MT520 hydraulic disc brake 180 mm |
| Brake lever | Shimano |
| Crank set | Samox e-Fat 160 mm, 34H |
| Chain | Sunrace CN12E |
| Rims | Sunringle Mulefut 80-559 32R |
| Saddle | Selle Royal Essenza Athletic |
| Seatpost | |
| Handlebar | Aluminium 35/780 mm |
| Stem | Fixed 35 mm |
| Rear axle measurements | 12x227x1.0mm |
| Tires | Schwalbe Jumbo Jim |
| Wheel size | 26" |
| Tire size ETRTO | 120-559 |
| Motor brand | Shimano |
| Motor model | Shimano EP801 |
| Motor type | Center |
| Motor specifications | 250W – 36V – 85Nm- 25km/h |
| Battery model | Darfon E4COM |
| Battery Energy (Wh) | |
| Battery placement | Integrated |
| Battery charging time | |
| Charger | Darfon Smart 4A |
| Display | |
| Color | black, dusk |
| Recommended height | |
| Weight (kg) | 15, black: 27 |
Helkama FE12 12sp 708Wh: 15
| fs ‐ Frame size | 15" |
|---|---|
| st ‐ Seat tube length | 381 |
| tt ‐ Effective top tube length | 680,1 |
| ht ‐ Head tube length | 140 |
| hta ‐ Head tube angle | 69 |
| sta ‐ Seat tube angle | 73 |
| cs ‐ Chainstay length | 495 |
| bd ‐ Bottom bracket drop | 67 |
| fo ‐ Fork rake/offset | 524 |
| s ‐ Stack | 670,9 |
| r ‐ Reach | 475 |
| wb ‐ Wheelbase | 1245,2 |
Helkama FE12 12sp 708Wh: 175
| fs ‐ Frame size | 17,5" |
|---|---|
| st ‐ Seat tube length | 444,5 |
| tt ‐ Effective top tube length | 690,1 |
| ht ‐ Head tube length | 140 |
| hta ‐ Head tube angle | 69 |
| sta ‐ Seat tube angle | 73 |
| cs ‐ Chainstay length | 495 |
| bd ‐ Bottom bracket drop | 67 |
| fo ‐ Fork rake/offset | 524 |
| s ‐ Stack | 670,9 |
| r ‐ Reach | 485 |
| wb ‐ Wheelbase | 1255,1 |
Helkama FE12 12sp 708Wh: 20
| fs ‐ Frame size | 20" |
|---|---|
| st ‐ Seat tube length | 508 |
| tt ‐ Effective top tube length | 703 |
| ht ‐ Head tube length | 150 |
| hta ‐ Head tube angle | 69 |
| sta ‐ Seat tube angle | 73 |
| cs ‐ Chainstay length | 495 |
| bd ‐ Bottom bracket drop | 67 |
| fo ‐ Fork rake/offset | 524 |
| s ‐ Stack | 680,3 |
| r ‐ Reach | 495 |
| wb ‐ Wheelbase | 1268,6 |
