Helkama FSE12 12sp 29/27.5” 708Wh

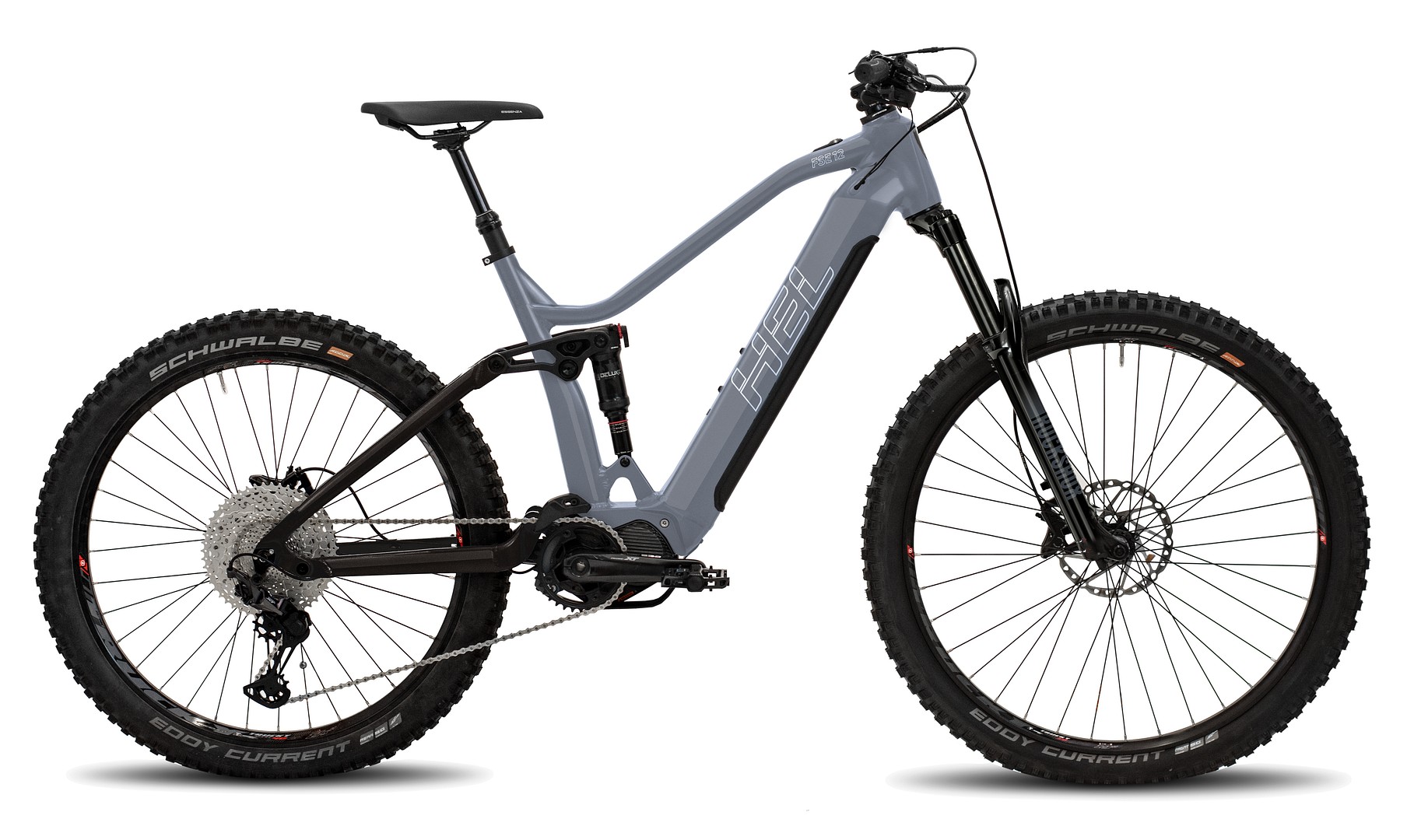

Helkama FSE12 is a full suspension e-mountain bike made in Hanko, Finland. The 2024 model is boosted by huge battery capacity and a modern Shimano 2nd Gen EP801 motor.
5499,00 €
Find closest dealerHelkama FSE12 is a full suspension e-mountain bike made in Hanko, Finland. The 2024 model is boosted by huge battery capacity and a modern Shimano 2nd Gen EP801 motor.
Full suspension e-mountain bike
The Helkama FSE12 e-bike is designed for sporty offroad riding, and it turns heads with its finished and stylish frame design. In order to achieve optimum power output, the bicycle has mullet tyres; a 29-inch tyre at the front and a wide 27.5+-inch tyre at the rear. The Sorata Pro suspension seatpost increases riding comfort. Thanks to the high-quality components, steep hills and challenging forest trails are no challenge, but riding is enjoyable also over roots and rocky ground.
The e-mountain bike features high-performance RockShox 35 Gold 160 mm front suspension with a high-quality DebonAir spring and Motion Control damping. The rear suspension is Deluxe Select+ Trunnion. These high-quality components are an apt combination even for the most demanding trails! Shimano hydraulic disc brakes and XT M8100 gear set together with Mach1 Trucky wheels and Schwalbe Eddy Current tyres guarantee excellent grip and braking power.
High-quality Shimano technology
The Shimano EP801 drive unit with 85 Nm of maximum torque provides an even and natural ride feel. The EP801 motor is one of the lightest on the market and offers powerful performance. The enhanced heat management of the motor guarantees that its operation will not be impaired even in the longest climbs.
The e-mountain bike is powered by an astonishing frame-integrated 708 Wh 19.2Ah Darfon E4COM battery with enough capacity for long offroad rides on a single charge.
The compact LCD colour display is easy to navigate and read. Thanks to the large touch area, the handlebar-mounted selection switches are easy to use while riding, also with gloves. The small, delicate and well-integrated operating levers make switching between assist modes easier.
- Motor: Shimano EP801 85 Nm
- Battery: Darfon E4COM 708 Wh
- Display: Shimano SC-EM800
- DRL daytime running lamp
Great DRL daytime running lamp
The Helkama FSE12 e-bike features an impressive DRL daytime running light. The frame-integrated light is a stylish small detail that allows you to stand out and be seen in traffic when darkness falls.
Shimano E-Tube app
You can connect your FSE12 by Bluetooth to the Shimano E-Tube Project app for editing the ride settings wirelessly. Adjust the settings to match your riding habits and preferences directly in the app. You can create two separate profiles in the app, switch between the profiles during your ride and review your ride data.
MOTOR
Shimano EP801 85Nm 250W 25KM/H
Smart drive unit that offers controllable high-performance power with a maximum torque of 85 Nm over an even wider cadence range. The result is streamlined power and improved control that provide a natural ride feel.
BATTERY
Darfon E4C0M 708Wh
A frame-integrated ISO 708Wh battery with enough capacity on a single charge for longer offroad rides.
DISPLAY
Shimano SC-EM800
All ride settings and colour-coordinated assist levels from a 1.6 "LCD at a glance. The integrated display does not take all the space over the handlebar and the placement on the handlebar is safe. The display can also be read in bright sunlight.
DRL
Daytime running lamp
The frame-integrated light is a stylish small detail that allows you to stand out and be seen in traffic when darkness fabike
Additional information
| Brand | Helkama |
|---|---|
| Product name | |
| Frame | Aluminum |
| Frame size | 16,5", 18", 19,5" |
| Front fork | RockShox 35 Gold 160 mm boost |
| Rear suspension | RockShox Deluxe Select+ RT 185×55 Trunnion |
| Transmission | Shimano M8100 SGS XT 12s Shadow+ |
| Shifter | Shimano Deore XT SL-M8100 |
| Front brakes | Shimano MT520 hydraulic disc brake 180 mm 4-piston |
| Rear brakes | Shimano MT520 hydraulic disc brake 180 mm 4-piston |
| Brake lever | Shimano |
| Crank set | FSA CK-752 165mm / 34H |
| Chain | Sunrace CN12E |
| Rims | Mach1 30-622 36R black / 40-584 36R black |
| Saddle | Selle Royal Essenza Athletic |
| Seatpost | |
| Handlebar | Aluminium 35/780 mm |
| Stem | Fixed 35 mm |
| Rear axle measurements | 12x168x1.0mm |
| Tires | Schwalbe Eddy Current |
| Wheel size | 29"/27,5+" |
| Tire size ETRTO | 65-622 / 70-584 |
| Motor brand | Shimano |
| Motor model | Shimano EP801 |
| Motor type | Center |
| Motor specifications | 250W – 36V – 85Nm- 25km/h |
| Battery model | Darfon E4COM |
| Battery Energy (Wh) | |
| Battery placement | Integrated |
| Battery charging time | |
| Charger | Darfon Smart 4A |
| Display | |
| Painoraja | 140 |
| Recommended height | |
| Weight (kg) | 27 |
Helkama FSE12 12sp 29/27.5” 708Wh: 165
| fs ‐ Frame size | 16,5" |
|---|---|
| st ‐ Seat tube length | 420 |
| tt ‐ Effective top tube length | 621,6 |
| ht ‐ Head tube length | 130 |
| hta ‐ Head tube angle | 67 |
| sta ‐ Seat tube angle | 74 |
| cs ‐ Chainstay length | 460 |
| bd ‐ Bottom bracket drop | 15 |
| fo ‐ Fork rake/offset | 561 |
| s ‐ Stack | 631,1 |
| r ‐ Reach | 440 |
| wb ‐ Wheelbase | 1216 |
Helkama FSE12 12sp 29/27.5” 708Wh: 18
| fs ‐ Frame size | 18" |
|---|---|
| st ‐ Seat tube length | 460 |
| tt ‐ Effective top tube length | 635,3 |
| ht ‐ Head tube length | 140 |
| hta ‐ Head tube angle | 67 |
| sta ‐ Seat tube angle | 74 |
| cs ‐ Chainstay length | 460 |
| bd ‐ Bottom bracket drop | 15 |
| fo ‐ Fork rake/offset | 561 |
| s ‐ Stack | 640,3 |
| r ‐ Reach | 450 |
| wb ‐ Wheelbase | 1230,7 |
Helkama FSE12 12sp 29/27.5” 708Wh: 195
| fs ‐ Frame size | 19,5" |
|---|---|
| st ‐ Seat tube length | 500 |
| tt ‐ Effective top tube length | 648,1 |
| ht ‐ Head tube length | 150 |
| hta ‐ Head tube angle | 67 |
| sta ‐ Seat tube angle | 74 |
| cs ‐ Chainstay length | 460 |
| bd ‐ Bottom bracket drop | 15 |
| fo ‐ Fork rake/offset | 561 |
| s ‐ Stack | 649,5 |
| r ‐ Reach | 460 |
| wb ‐ Wheelbase | 1244,6 |
