Helkama TE7 7sp 28”

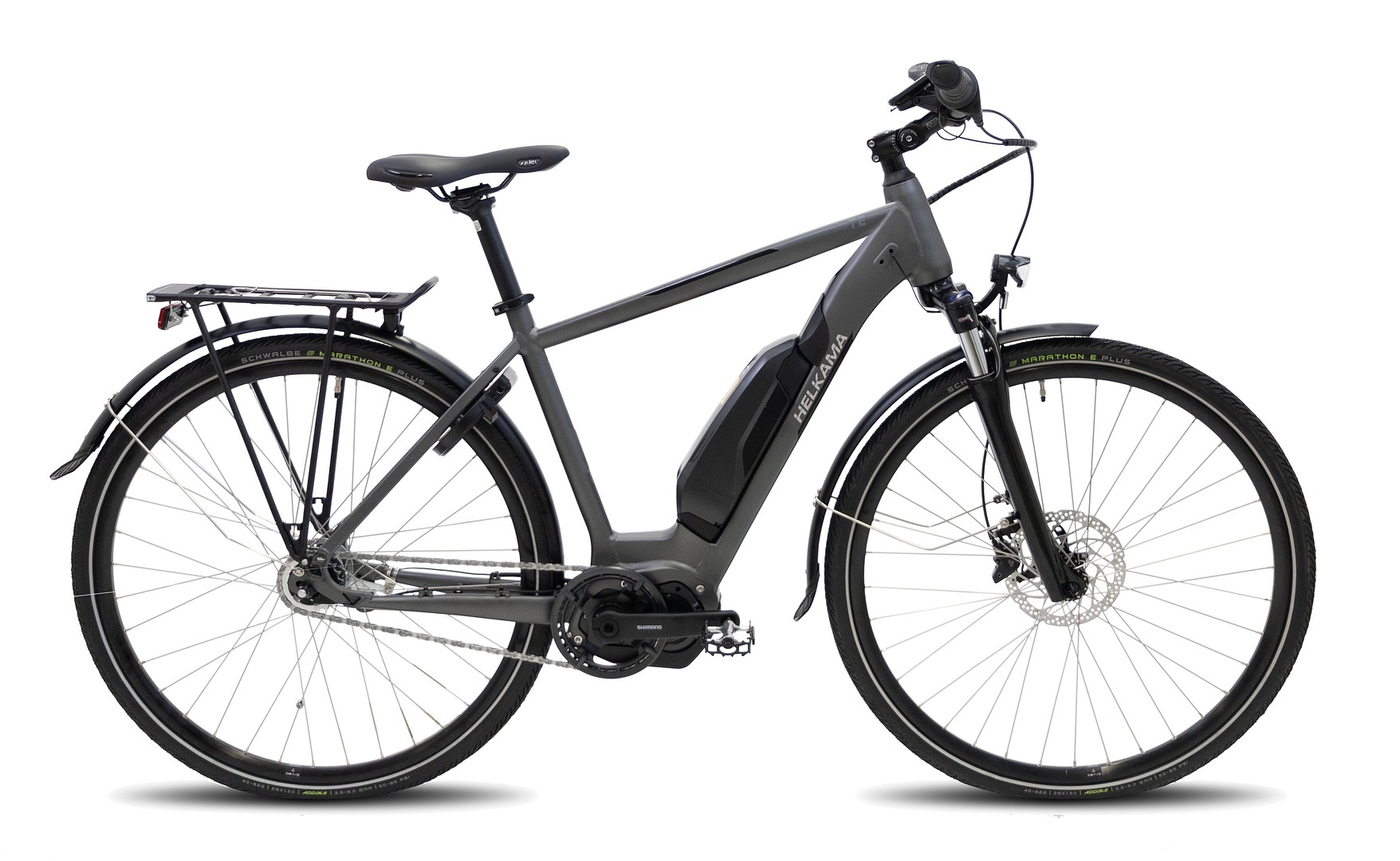

Helkama TE7 is a well-equipped hybrid e-bike that offers carefree e-cycling, especially for commuting and urban cycling.

2799,00

Frame size:
Find closest dealer

Helkama TE7 is a well-equipped hybrid e-bike that offers carefree e-cycling, especially for commuting and urban cycling. The bicycle is made at Helkama’s plant in Hanko.

The seven-speed TE7 e-hybrid gives joy with its stylish dark grey colour, and it is available in two frame sizes. The bicycle features a Shimano Nexus 7 gear set, conventional coaster brake and powerful hydraulic front brake that guarantees certain braking power. Puncture-protected Schwalbe tyres roll smoothly on both pavement and gravel. Herrmans front and rear light, frame lock, kickstand and AtranVeloSystem pannier rack are included in the standard equipment.

Shimano motor and battery

With the Shimano E6110 motor, travel is swift: the 60 Nm maximum torque assists effectively even on steep inclines. In spite of its power, the E6110 runs very silently and unnoticeably. The lightweight motor is designed to respond quickly, which increases safety in fast-paced traffic. Shimano’s high-quality electric assist creates a steady and natural ride feel — with three assist levels: eco, normal and high.

The TE7 e-bike has a Shimano BT-E8010 battery partly integrated in the aluminium frame, and it is easy to remove from the bicycle. The Shimano SC-E6100 display shows your trip data in a handy way. The cycle computer displays your speed, distance, trip duration, time, gears, estimated range and battery charge.

  • Motor: Shimano Steps E6110 60 Nm
  • Battery: Shimano BT-E8010 504 Wh
  • Display: Shimano SC-E6100

Shimano E-Tube Project app

The TE7 e-bike can be connected by Bluetooth to the Shimano E-Tube Project app for editing the ride settings wirelessly. You can create two different profiles in the app, switch between them during your ride and review your ride data.

Features

Additional information

Product name

Helkama TE7 7s 28"

Brand

Helkama

Frame

Aluminum

Frame size

52 cm, 56 cm

Front fork

Suntour NEX E25, 63 mm

Transmission

Shimano Nexus 7

Gear amount

7

Shifter

Shimano Nexus 7

Front brakes

Shimano MT410 hydraulic disc brake 180mm

Rear brakes

Foot brake

Brake lever

Shimano

Crank set

Shimano FC-E6100 black 170 mm 38H

Chain

KMC

Rims

Mach1 21-622 36R

Saddle

Selle Royal Ariel Skingel Athletic

Seatpost

30,9 x 350 mm

Handlebar

Aluminium 31,8/660mm

Stem

Adjustable 110 mm

Rear axle measurements

Kiinteä 127/175,5mm

Tires

Schwalbe Marathon e-Plus

Wheel size

28"

Tire size ETRTO

40-622

Motor brand

Shimano

Motor model

Shimano E6110

Motor specifications

250W – 36V – 60Nm- 25km/h

Battery model

Shimano E8010

Battery Energy (Wh)

504

Battery placement

Frame battery

Battery charging time

80 % 4 h/ 100 % 7,5 h

Charger

Shimano E6002

Display

Shimano E6100

Color

gray

Lukko

AXA Solid Plus

Painoraja (kg)

145

Recommended height
Frame size Height (cm)
52-cm 160-180
56-cm 170-190
Weight (kg)

52-cm: 24,7
56-cm: 24,8

Helkama TE7 7sp 28”: 52-cm

fs ‐ Frame size 52
st ‐ Seat tube length 520
tt ‐ Effective top tube length 620
ht ‐ Head tube length 155
hta ‐ Head tube angle 71
sta ‐ Seat tube angle 73
cs ‐ Chainstay length 440
bd ‐ Bottom bracket drop 65
fo ‐ Fork rake/offset 460
s ‐ Stack 633
r ‐ Reach 426
wb ‐ Wheelbase 1125

Helkama TE7 7sp 28”: 56-cm

fs ‐ Frame size 56
st ‐ Seat tube length 560
tt ‐ Effective top tube length 635
ht ‐ Head tube length 155
hta ‐ Head tube angle 71
sta ‐ Seat tube angle 73
cs ‐ Chainstay length 440
bd ‐ Bottom bracket drop 65
fo ‐ Fork rake/offset 460
s ‐ Stack 632
r ‐ Reach 442
wb ‐ Wheelbase 1140
