MOTOR
Shimano EP801 85Nm 250W 25KM/h
Smart drive unit that offers controllable high-performance power with a maximum torque of 85 Nm over an even wider cadence range. The result is streamlined power and improved control that provide a natural ride feel.
BATTERY
Darfon E4C0M 708Wh
Large 708Wh battery with enough capacity for longer offroad rides.
DISPLAY
Shimano SC-EM800
All ride settings and colour-coordinated assist levels from a 1.6 "LCD at a glance. The integrated display does not take all the space over the handlebar and the placement on the handlebar is safe. The display can also be read in bright sunlight.
DRL
Daytime running lamp
The frame-integrated light is a stylish small detail that allows you to stand out and be seen in traffic when darkness fabike

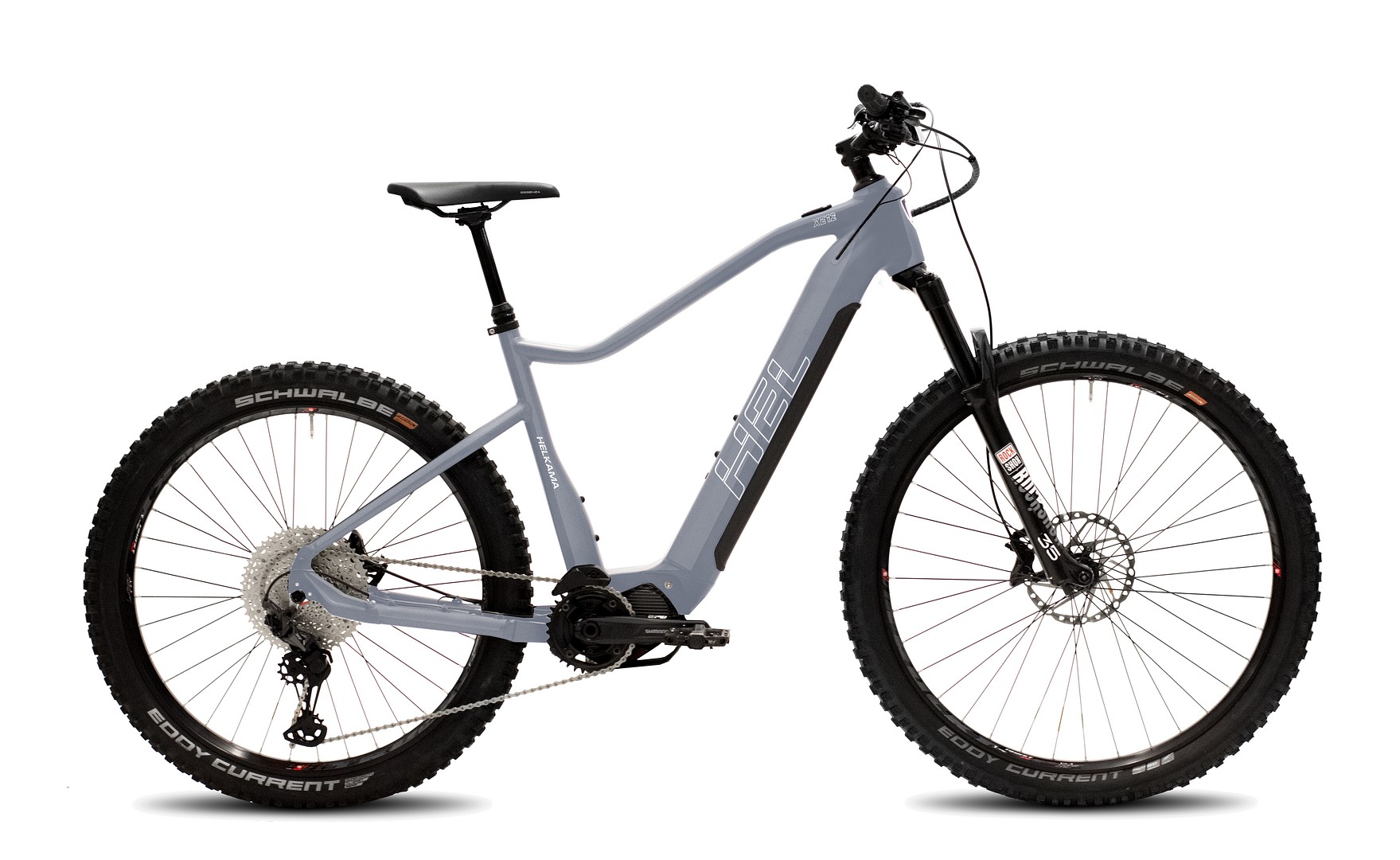

Helkama XE12 12sp 29/27.5” 708Wh
4499,00 €
The Helkama XE12 e-mountain bike is a versatile bike for offroad trails and daily city rides. The 2024 model is boosted by a large 708 Wh battery and a powerful Shimano 2nd Gen EP801 motor.
Description
The Helkama XE12 e-mountain bike is a versatile bike for offroad trails and daily city rides. The 2024 model is boosted by a large 708 Wh battery and a powerful Shimano 2nd Gen EP801 motor.
The XE12’s high-performance RockShox 35 Gold 130 mm front suspension with a high-quality DebonAir spring and Motion Control damping is a functional combination for the most challenging trails. Shimano hydraulic disc brakes and XT M8100 gear set together with Mach1 Trucky wheels and Schwalbe Eddy Current tyres guarantee a stable ride even in difficult terrain.
The Helkama XE12 e-bike also features a DRL daytime running light. The frame-integrated light is a stylish small detail that allows you to stand out and be seen in traffic when darkness falls.
708 Wh battery capacity
The Shimano EP801 drive unit with 85 Nm of maximum torque provides an even and natural ride feel. The EP801 motor is one of the lightest and provides controllable high-performance power through an extended cadence range. The improved heat management of the modern 2nd Gen motor means that its operation will not be impaired even in long climbs.
The XE12 e-bike is powered by a huge frame-integrated 708 Wh 19.2Ah Darfon E4COM battery with enough capacity for long offroad rides on a single charge.
The stylish and compact LCD colour display of the e-bike is easy to navigate and read. Thanks to the large touch area, the handlebar-mounted selection switches are easy to use while riding, also with gloves. The small, delicate and well-integrated operating levers make switching between assist modes easier.
- Motor Shimano EP801 85Nm
- High-capacity battery Darfon E4COM 708 Wh
- Display Shimano SC-EM800
- DRL daytime running lamp
Connect your Helkama to the E-Tube app
You can connect your XE12 by Bluetooth to the Shimano E-Tube Project app for editing the ride settings wirelessly. You can adjust the settings to match your riding habits and preferences directly in the app. You can create two different profiles in the app, switch between them during your ride and review your ride data.
Additional information
| Product name | |
|---|---|
| Brand | Helkama |
| Frame | Aluminum |
| Frame size | 16,5", 18", 19,5" |
| Front fork | RockShox 35 Gold 130 mm boost |
| Transmission | Shimano M8100 SGS XT 12s Shadow+ |
| Shifter | Shimano Deore XT SL-M8100 |
| Front brakes | Shimano MT520 hydraulic disc brake 180 mm |
| Rear brakes | Shimano MT520 hydraulic disc brake 180 mm |
| Brake lever | Shimano |
| Crank set | FSA CK-752 165mm / 34H |
| Chain | Sunrace CN12E |
| Rims | Mach1 Trucky 30-622 36 R black / 40-584 36R black |
| Saddle | Selle Royal Essenza Athletic |
| Seatpost | Seat post Sorata Pro 30.9 125/430 |
| Handlebar | Aluminium 35/780 mm |
| Stem | Fixed 35 mm |
| Rear axle measurements | 12x177x1.0mm |
| Tires | Schwalbe Eddy Current |
| Wheel size | 29"/27,5+" |
| Tire size ETRTO | 65-622 / 70-584 |
| Motor brand | Shimano |
| Motor model | Shimano EP801 |
| Motor type | Center |
| Motor specifications | 250W – 36V – 85Nm- 25km/h |
| Battery model | Darfon E4COM |
| Battery Energy (Wh) | |
| Battery placement | Integrated |
| Battery charging time | 80% 3,8h , 100% 5,6h |
| Charger | Darfon Smart 4A |
| Display | Shimano SC-EM800 |
| Recommended height | |
| Weight (kg) | 26 |
Helkama XE12 12sp 29/27.5” 708Wh: 165
| fs ‐ Frame size | 16,5" |
|---|---|
| st ‐ Seat tube length | 420 |
| tt ‐ Effective top tube length | 594,6 |
| ht ‐ Head tube length | 130 |
| hta ‐ Head tube angle | 67 |
| sta ‐ Seat tube angle | 75 |
| cs ‐ Chainstay length | 455 |
| bd ‐ Bottom bracket drop | 60 |
| fo ‐ Fork rake/offset | 554,1 |
| s ‐ Stack | 670,2 |
| r ‐ Reach | 415 |
| wb ‐ Wheelbase | 1179,4 |
Helkama XE12 12sp 29/27.5” 708Wh: 18
| fs ‐ Frame size | 18" |
|---|---|
| st ‐ Seat tube length | 460 |
| tt ‐ Effective top tube length | 612 |
| ht ‐ Head tube length | 140 |
| hta ‐ Head tube angle | 67 |
| sta ‐ Seat tube angle | 75 |
| cs ‐ Chainstay length | 455 |
| bd ‐ Bottom bracket drop | 60 |
| fo ‐ Fork rake/offset | 554,1 |
| s ‐ Stack | 679,4 |
| r ‐ Reach | 430 |
| wb ‐ Wheelbase | 1198,3 |
Helkama XE12 12sp 29/27.5” 708Wh: 195
| fs ‐ Frame size | 19,5" |
|---|---|
| st ‐ Seat tube length | 500 |
| tt ‐ Effective top tube length | 629,5 |
| ht ‐ Head tube length | 150 |
| hta ‐ Head tube angle | 67 |
| sta ‐ Seat tube angle | 75 |
| cs ‐ Chainstay length | 455 |
| bd ‐ Bottom bracket drop | 60 |
| fo ‐ Fork rake/offset | 544,1 |
| s ‐ Stack | 688,6 |
| r ‐ Reach | 445 |
| wb ‐ Wheelbase | 1217,2 |
